Diffraction project datasets 3tzq
- Method: MR
- Resolution: 2.5 Å
- Space group: P 1 21 1
PDB website for 3TZQ
PDB validation report for 3TZQ
doi:10.18430/M33TZQ
Project details
| Title | Crystal structure of a short-chain type dehydrogenase/reductase from Mycobacterium marinum |
| Authors | Baugh, L., Phan, I., Begley, D.W., Clifton, M.C., Armour, B., Dranow, D.M., Taylor, B.M., Muruthi, M.M., Abendroth, J., Fairman, J.W., Fox, D., Dieterich, S.H., Staker, B.L., Gardberg, A.S., Choi, R., Hewitt, S.N., Napuli, A.J., Myers, J., Barrett, L.K., Zhang, Y., Ferrell, M., Mundt, E., Thompkins, K., Tran, N., Lyons-Abbott, S., Abramov, A., Sekar, A., Serbzhinskiy, D., Lorimer, D., Buchko, G.W., Stacy, R., Stewart, L.J., Edwards, T.E., Van Voorhis, W.C., Myler, P.J. |
| R / Rfree | 0.18 / 0.24 |
| Unit cell edges [Å] | 69.67 x 122.07 x 125.29 |
| Unit cell angles [°] | 90.0, 101.0, 90.0 |

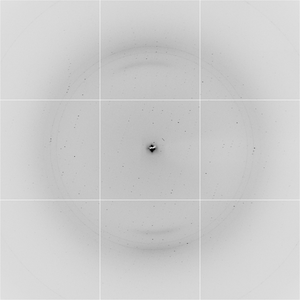

Dataset uij4_11_1_###.img details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 390.0 |
| Oscillation width [°] | 0.70 |
| Omega [°] | 335.0 |
| Phi [°] | 335.0 |
| Wavelength [Å] | 0.97740 |
| Experiment Date | 2011-04-10 |
| Equipment | 5.0.1 at ALS (Advanced Light Source) |
