Diffraction project datasets 3tmq

  • Method: Molecular Replacement
  • Resolution: 2.1 Å
  • Space group: P 21 21 21
Download all images (1.9 GB)

PDB website for 3TMQ

doi:10.18430/M33TMQ

Project details

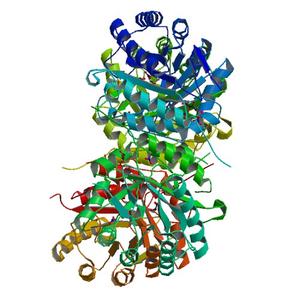

Title Crystal structure of a 2-dehydro-3-deoxyphosphooctonate aldolase from Burkholderia pseudomallei in complex with D-arabinose-5-phosphate
Authors Baugh, L., Gallagher, L.A., Patrapuvich, R., Clifton, M.C., Gardberg, A.S., Edwards, T.E., Armour, B., Begley, D.W., Dieterich, S.H., Dranow, D.M., Abendroth, J., Fairman, J.W., Fox, D., Staker, B.L., Phan, I., Gillespie, A., Choi, R., Nakazawa-Hewitt, S., Nguyen, M.T., Napuli, A., Barrett, L., Buchko, G.W., Stacy, R., Myler, P.J., Stewart, L.J., Manoil, C., Van Voorhis, W.C.
R / Rfree 0.18 / 0.22
Unit cell edges [Å] 89.72 x 92.08 x 152.98
Unit cell angles [°] 90.0, 90.0, 90.0

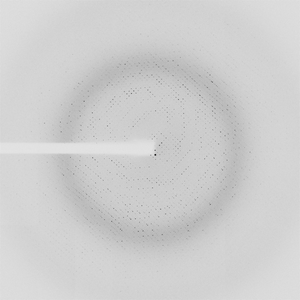

Dataset fk0-8_300mm.### details

Number of frames 270 (1 - 270)
Distance [mm] 300.0
Oscillation width [°] 0.50
Phi [°] 95.0
Wavelength [Å] 0.97856
Experiment Date 2011-08-19
Equipment 21-ID-G at APS (Advanced Photon Source)
