Diffraction project datasets 3tk1

  • Method: Molecular Replacement
  • Resolution: 2.4 Å
  • Space group: P 21 21 21
Download all images (1001.9 MB)

PDB website for 3TK1


Project details

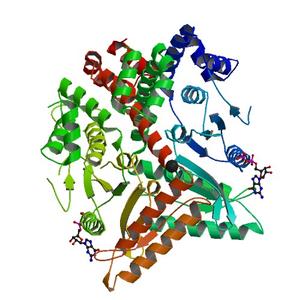

Title Crystal structure of a MeaB and Rv1496 ortholog from Mycobacterium thermoresistible bound to GDP
Authors Baugh, L., Phan, I., Begley, D.W., Clifton, M.C., Armour, B., Dranow, D.M., Taylor, B.M., Muruthi, M.M., Abendroth, J., Fairman, J.W., Fox, D., Dieterich, S.H., Staker, B.L., Gardberg, A.S., Choi, R., Hewitt, S.N., Napuli, A.J., Myers, J., Barrett, L.K., Zhang, Y., Ferrell, M., Mundt, E., Thompkins, K., Tran, N., Lyons-Abbott, S., Abramov, A., Sekar, A., Serbzhinskiy, D., Lorimer, D., Buchko, G.W., Stacy, R., Stewart, L.J., Edwards, T.E., Van Voorhis, W.C., Myler, P.J.
R / Rfree 0.22 / 0.28
Unit cell edges [Å] 42.38 x 106.43 x 134.04
Unit cell angles [°] 90.0, 90.0, 90.0

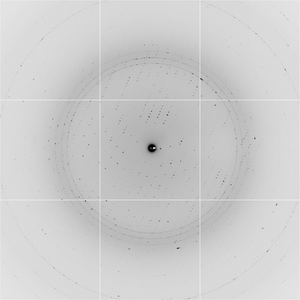

Dataset bpt1_3_1_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 350.0
Oscillation width [°] 1.00
Omega [°] 50.0
Phi [°] 50.0
Wavelength [Å] 0.97740
Experiment Date 2010-07-21
Equipment 5.0.1 at ALS (Advanced Light Source)
