Diffraction project datasets 3si9

  • Method: Molecular Replacement
  • Resolution: 2.1 Å
  • Space group: P 21 21 21
Download all images (795.1 MB)

PDB website for 3SI9

doi:10.18430/M33SI9

Project details

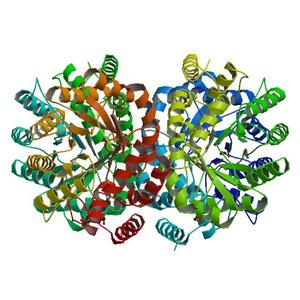

Title Crystal structure of Dihydrodipicolinate Synthase from Bartonella Henselae
Authors Naqvi, K.F., Staker, B.L., Dobson, R.C., Serbzhinskiy, D., Sankaran, B., Myler, P.J., Hudson, A.O.
R / Rfree 0.18 / 0.23
Unit cell edges [Å] 79.96 x 106.33 x 136.25
Unit cell angles [°] 90.0, 90.0, 90.0

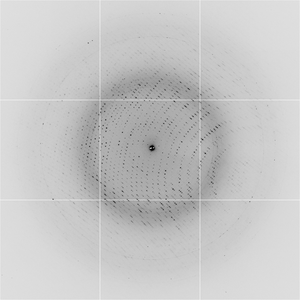

Dataset mly7-8_1_###.img details

Number of frames 150 (1 - 150)
Distance [mm] 250.0
Oscillation width [°] 1.00
Omega [°] 322.0
Phi [°] 322.0
Wavelength [Å] 0.97740
Experiment Date 2011-02-10
Equipment 5.0.1 at ALS (Advanced Light Source)
