Diffraction project datasets 3s6l

  • Method: SAD
  • Resolution: 2.3 Å
  • Space group: P 21 3
Download all images (1.0 GB)

PDB website for 3S6L

doi:10.18430/M33S6L

Project details

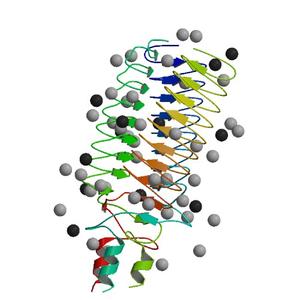

Title Crystal structure of a YadA-like head domain of the trimeric autotransporter adhesin BoaA from Burkholderia pseudomallei solved by iodide ion SAD phasing
Authors Edwards, T.E., Gardberg, A.S., Lafontaine, E.R., Seattle Structural Genomics Center for Infectious Disease (SSGCID)
R / Rfree 0.18 / 0.21
Unit cell edges [Å] 144.00 x 144.00 x 144.00
Unit cell angles [°] 90.0, 90.0, 90.0

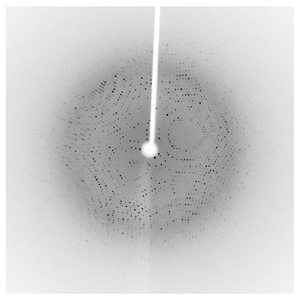

Dataset 218438h2_x####.img details

Number of frames 720 (1 - 720)
Distance [mm] 55.0
Oscillation width [°] 0.50
Omega [°] -90.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

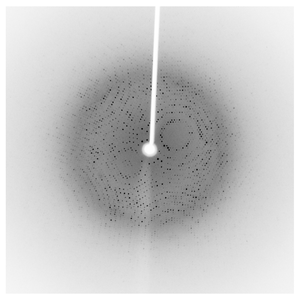

Dataset 218438h2_y####.img details

Number of frames 240 (1 - 240)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -90.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)
