Diffraction project datasets 3rr2

  • Method: Molecular Replacement
  • Resolution: 1.95 Å
  • Space group: P 43 21 2
Download all images (800.9 MB)

PDB website for 3RR2

doi:10.18430/M33RR2

Project details

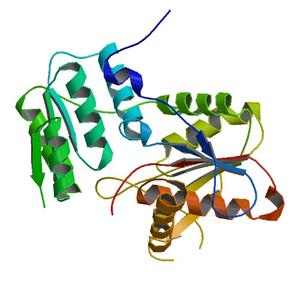

Title Structure of a Cysteine synthase (O-Acetylserine Sulfhydrylase (OASS)) from Mycobacterium marinum ATCC BAA-535 / M
Authors Baugh, L., Phan, I., Begley, D.W., Clifton, M.C., Armour, B., Dranow, D.M., Taylor, B.M., Muruthi, M.M., Abendroth, J., Fairman, J.W., Fox, D., Dieterich, S.H., Staker, B.L., Gardberg, A.S., Choi, R., Hewitt, S.N., Napuli, A.J., Myers, J., Barrett, L.K., Zhang, Y., Ferrell, M., Mundt, E., Thompkins, K., Tran, N., Lyons-Abbott, S., Abramov, A., Sekar, A., Serbzhinskiy, D., Lorimer, D., Buchko, G.W., Stacy, R., Stewart, L.J., Edwards, T.E., Van Voorhis, W.C., Myler, P.J.
R / Rfree 0.19 / 0.23
Unit cell edges [Å] 51.19 x 51.19 x 229.90
Unit cell angles [°] 90.0, 90.0, 90.0

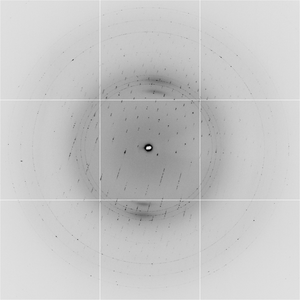

Dataset HXV-6_1_###.img details

Number of frames 150 (1 - 150)
Distance [mm] 260.0
Oscillation width [°] 1.00
Omega [°] -82.0
Phi [°] -82.0
Wavelength [Å] 0.97650
Experiment Date 2011-03-25
Equipment 5.0.3 at ALS (Advanced Light Source)
