Diffraction project datasets 3rih

  • Method: Molecular Replacement
  • Resolution: 2.15 Å
  • Space group: P 43 21 2
Download all images (856.3 MB)

PDB website for 3RIH

doi:10.18430/M33RIH

Project details

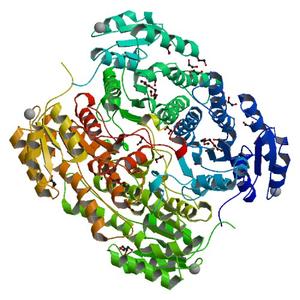

Title Crystal structure of a putative short chain dehydrogenase or reductase from Mycobacterium abscessus
Authors Baugh, L., Phan, I., Begley, D.W., Clifton, M.C., Armour, B., Dranow, D.M., Taylor, B.M., Muruthi, M.M., Abendroth, J., Fairman, J.W., Fox, D., Dieterich, S.H., Staker, B.L., Gardberg, A.S., Choi, R., Hewitt, S.N., Napuli, A.J., Myers, J., Barrett, L.K., Zhang, Y., Ferrell, M., Mundt, E., Thompkins, K., Tran, N., Lyons-Abbott, S., Abramov, A., Sekar, A., Serbzhinskiy, D., Lorimer, D., Buchko, G.W., Stacy, R., Stewart, L.J., Edwards, T.E., Van Voorhis, W.C., Myler, P.J.
R / Rfree 0.15 / 0.18
Unit cell edges [Å] 208.55 x 208.55 x 94.67
Unit cell angles [°] 90.0, 90.0, 90.0

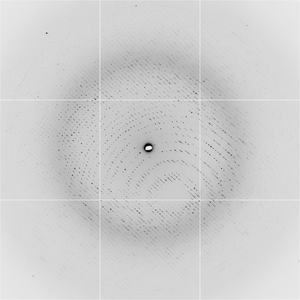

Dataset HXV-11_1_###.img details

Number of frames 150 (1 - 150)
Distance [mm] 320.0
Oscillation width [°] 1.00
Omega [°] -22.0
Phi [°] -22.0
Wavelength [Å] 0.97650
Experiment Date 2011-03-25
Equipment 5.0.3 at ALS (Advanced Light Source)
