Diffraction project datasets 3rd8

  • Method: Molecular Replacement
  • Resolution: 2.2 Å
  • Space group: I 2 2 2
Download all images (422.1 MB)

PDB website for 3RD8

doi:10.18430/M33RD8

Project details

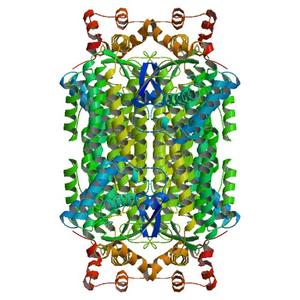

Title Crystal structure of fumarate hydratase class II Mycobacterium smegmatis
Authors Baugh, L., Phan, I., Begley, D.W., Clifton, M.C., Armour, B., Dranow, D.M., Taylor, B.M., Muruthi, M.M., Abendroth, J., Fairman, J.W., Fox, D., Dieterich, S.H., Staker, B.L., Gardberg, A.S., Choi, R., Hewitt, S.N., Napuli, A.J., Myers, J., Barrett, L.K., Zhang, Y., Ferrell, M., Mundt, E., Thompkins, K., Tran, N., Lyons-Abbott, S., Abramov, A., Sekar, A., Serbzhinskiy, D., Lorimer, D., Buchko, G.W., Stacy, R., Stewart, L.J., Edwards, T.E., Van Voorhis, W.C., Myler, P.J.
R / Rfree 0.17 / 0.20
Unit cell edges [Å] 72.49 x 105.25 x 139.02
Unit cell angles [°] 90.0, 90.0, 90.0

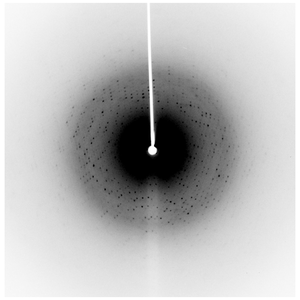

Dataset 216990f9_x####.img details

Number of frames 326 (1 - 326)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -75.0
Phi [°] 90.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)
