Diffraction project datasets 3rd5
- Method: SAD
- Resolution: 1.5 Å
- Space group: P 21 21 21
PDB website for 3RD5
PDB validation report for 3RD5
doi:10.18430/M33RD5
Project details

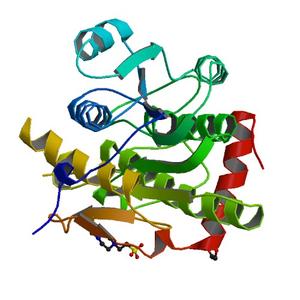

| Title | Crystal structure of a putative uncharacterized protein from Mycobacterium Paratuberculosis |
| Authors | Baugh, L., Phan, I., Begley, D.W., Clifton, M.C., Armour, B., Dranow, D.M., Taylor, B.M., Muruthi, M.M., Abendroth, J., Fairman, J.W., Fox, D., Dieterich, S.H., Staker, B.L., Gardberg, A.S., Choi, R., Hewitt, S.N., Napuli, A.J., Myers, J., Barrett, L.K., Zhang, Y., Ferrell, M., Mundt, E., Thompkins, K., Tran, N., Lyons-Abbott, S., Abramov, A., Sekar, A., Serbzhinskiy, D., Lorimer, D., Buchko, G.W., Stacy, R., Stewart, L.J., Edwards, T.E., Van Voorhis, W.C., Myler, P.J. |
| R / Rfree | 0.13 / 0.15 |
| Unit cell edges [Å] | 64.92 x 78.10 x 86.22 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

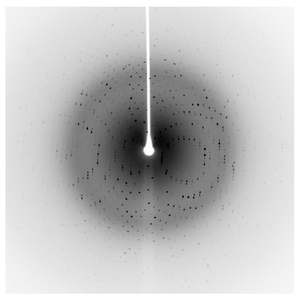

Dataset 220354b4_400mm_nai_x####.img details
| Number of frames | 360 (361 - 720) |
| Distance [mm] | 50.0 |
| Oscillation width [°] | 0.50 |
| Omega [°] | -90.0 |
| Phi [°] | 180.0 |
| Wavelength [Å] | 1.54178 |
| Equipment | undef |

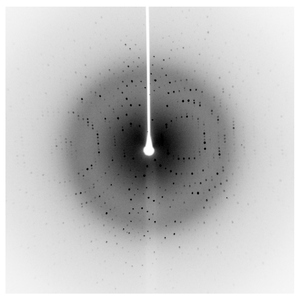

Dataset 220354b4_iodide1_x####.img details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 50.0 |
| Oscillation width [°] | 0.50 |
| Omega [°] | -90.0 |
| Wavelength [Å] | 1.54178 |
| Equipment | undef |

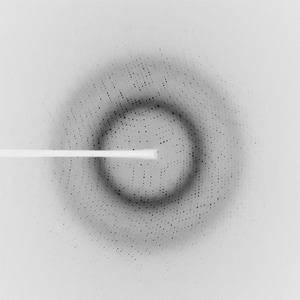

Dataset bdu3-1-highres.### details
| Number of frames | 270 (1 - 270) |
| Distance [mm] | 175.0 |
| Oscillation width [°] | 0.50 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2011-03-04 |
| Equipment | undef |
Dataset bdu3-10lowres.### details
| Number of frames | 135 (1 - 135) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 1.00 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2011-03-04 |
| Equipment | undef |
