Diffraction project datasets 3r4t

  • Method: Molecular Replacement
  • Resolution: 2.5 Å
  • Space group: P 62 2 2
Download all images (1.1 GB)

PDB website for 3R4T


Project details

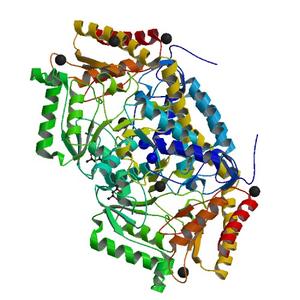

Title Crystal structure of 4-aminobutyrate aminotransferase GabT from Mycobacterium marinum covalently bound to pyridoxal phosphate
Authors Baugh, L., Phan, I., Begley, D.W., Clifton, M.C., Armour, B., Dranow, D.M., Taylor, B.M., Muruthi, M.M., Abendroth, J., Fairman, J.W., Fox, D., Dieterich, S.H., Staker, B.L., Gardberg, A.S., Choi, R., Hewitt, S.N., Napuli, A.J., Myers, J., Barrett, L.K., Zhang, Y., Ferrell, M., Mundt, E., Thompkins, K., Tran, N., Lyons-Abbott, S., Abramov, A., Sekar, A., Serbzhinskiy, D., Lorimer, D., Buchko, G.W., Stacy, R., Stewart, L.J., Edwards, T.E., Van Voorhis, W.C., Myler, P.J.
R / Rfree 0.15 / 0.19
Unit cell edges [Å] 123.62 x 123.62 x 157.59
Unit cell angles [°] 90.0, 90.0, 120.0

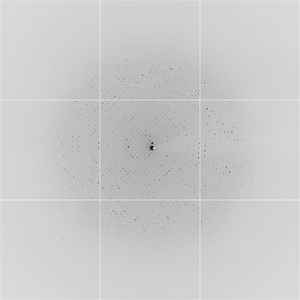

Dataset QSN7_15_1_###.img details

Number of frames 220 (1 - 220)
Distance [mm] 320.0
Oscillation width [°] 1.00
Omega [°] 278.0
Phi [°] 278.0
Wavelength [Å] 0.97740
Experiment Date 2011-03-04
Equipment 5.0.1 at ALS (Advanced Light Source)
