Diffraction project datasets 3r20
- Method: Molecular Replacement
- Resolution: 2.0 Å
- Space group: P 3 2 1
PDB website for 3R20
PDB validation report for 3R20
doi:10.18430/M33R20
Project details

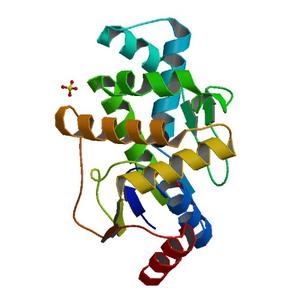

| Title | Crystal structure of cytidylate kinase from Mycobacterium smegmatis |
| Authors | Craig, J.K., Risler, J.K., Loesch, K.A., Dong, W., Baker, D., Barrett, L.K., Subramanian, S., Samudrala, R., Van Voorhis, W.C. |
| R / Rfree | 0.17 / 0.21 |
| Unit cell edges [Å] | 96.22 x 96.22 x 43.15 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

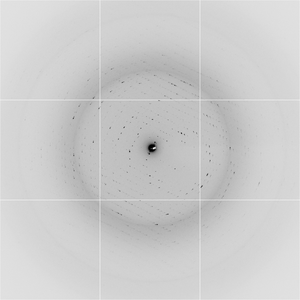

Dataset PI09_8_1_###.img details
| Number of frames | 150 (1 - 150) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -64.0 |
| Phi [°] | -64.0 |
| Wavelength [Å] | 0.97740 |
| Experiment Date | 2011-03-05 |
| Equipment | 5.0.1 at ALS (Advanced Light Source) |
