Diffraction project datasets 3qxz

  • Method: Molecular Replacement
  • Resolution: 1.35 Å
  • Space group: P 32
Download all images (835.0 MB)

PDB website for 3QXZ


Project details

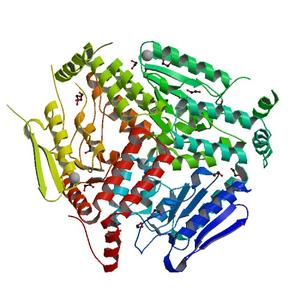

Title Crystal structure of a probable enoyl-CoA hydratase/isomerase from Mycobacterium abscessus
Authors Baugh, L., Phan, I., Begley, D.W., Clifton, M.C., Armour, B., Dranow, D.M., Taylor, B.M., Muruthi, M.M., Abendroth, J., Fairman, J.W., Fox, D., Dieterich, S.H., Staker, B.L., Gardberg, A.S., Choi, R., Hewitt, S.N., Napuli, A.J., Myers, J., Barrett, L.K., Zhang, Y., Ferrell, M., Mundt, E., Thompkins, K., Tran, N., Lyons-Abbott, S., Abramov, A., Sekar, A., Serbzhinskiy, D., Lorimer, D., Buchko, G.W., Stacy, R., Stewart, L.J., Edwards, T.E., Van Voorhis, W.C., Myler, P.J.
R / Rfree 0.15 / 0.17
Unit cell edges [Å] 76.17 x 76.17 x 122.52
Unit cell angles [°] 90.0, 90.0, 120.0

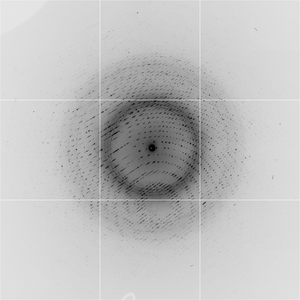

Dataset vmk5_1_1_###.img details

Number of frames 150 (1 - 150)
Distance [mm] 170.0
Oscillation width [°] 1.00
Omega [°] 202.0
Phi [°] 202.0
Wavelength [Å] 0.97740
Experiment Date 2011-02-10
Equipment 5.0.1 at ALS (Advanced Light Source)
