Diffraction project datasets 3qlj

  • Method: Molecular Replacement
  • Resolution: 1.8 Å
  • Space group: P 1 21 1
Download all images (1.2 GB)

PDB website for 3QLJ

doi:10.18430/M33QLJ

Project details

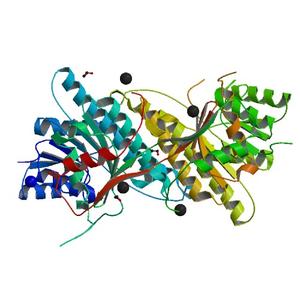

Title Crystal structure of a short chain dehydrogenase from Mycobacterium avium
Authors Baugh, L., Phan, I., Begley, D.W., Clifton, M.C., Armour, B., Dranow, D.M., Taylor, B.M., Muruthi, M.M., Abendroth, J., Fairman, J.W., Fox, D., Dieterich, S.H., Staker, B.L., Gardberg, A.S., Choi, R., Hewitt, S.N., Napuli, A.J., Myers, J., Barrett, L.K., Zhang, Y., Ferrell, M., Mundt, E., Thompkins, K., Tran, N., Lyons-Abbott, S., Abramov, A., Sekar, A., Serbzhinskiy, D., Lorimer, D., Buchko, G.W., Stacy, R., Stewart, L.J., Edwards, T.E., Van Voorhis, W.C., Myler, P.J.
R / Rfree 0.16 / 0.19
Unit cell edges [Å] 81.52 x 129.90 x 91.86
Unit cell angles [°] 90.0, 109.9, 90.0

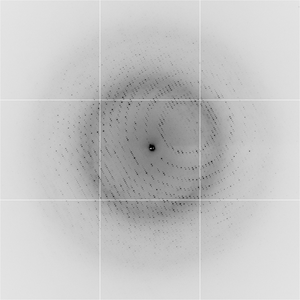

Dataset MCR3_2_1_###.img details

Number of frames 220 (1 - 220)
Distance [mm] 240.0
Oscillation width [°] 1.00
Omega [°] 354.0
Phi [°] 354.0
Wavelength [Å] 0.97740
Experiment Date 2011-01-23
Equipment 5.0.1 at ALS (Advanced Light Source)
