Diffraction project datasets 3pzy

  • Method: Fourier Synthesis
  • Resolution: 1.8 Å
  • Space group: P 63
Download all images (409.2 MB)

PDB website for 3PZY

doi:10.18430/M33PZY

Project details

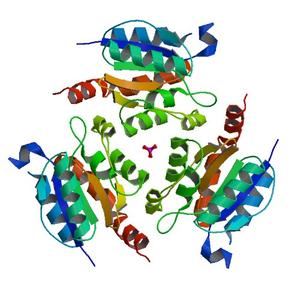

Title Crystal structure of Molybdopterin biosynthesis mog protein from Mycobacterium paratuberculosis
Authors Baugh, L., Phan, I., Begley, D.W., Clifton, M.C., Armour, B., Dranow, D.M., Taylor, B.M., Muruthi, M.M., Abendroth, J., Fairman, J.W., Fox, D., Dieterich, S.H., Staker, B.L., Gardberg, A.S., Choi, R., Hewitt, S.N., Napuli, A.J., Myers, J., Barrett, L.K., Zhang, Y., Ferrell, M., Mundt, E., Thompkins, K., Tran, N., Lyons-Abbott, S., Abramov, A., Sekar, A., Serbzhinskiy, D., Lorimer, D., Buchko, G.W., Stacy, R., Stewart, L.J., Edwards, T.E., Van Voorhis, W.C., Myler, P.J.
R / Rfree 0.19 / 0.23
Unit cell edges [Å] 68.65 x 68.65 x 52.83
Unit cell angles [°] 90.0, 90.0, 120.0

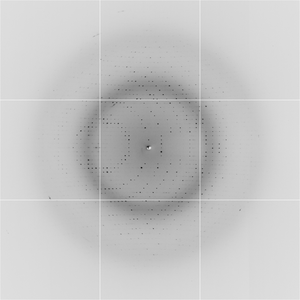

Dataset e-sno-5_2_###.img details

Number of frames 90 (1 - 90)
Distance [mm] 225.0
Oscillation width [°] 1.00
Omega [°] -30.0
Phi [°] -30.0
Wavelength [Å] 0.97650
Experiment Date 2010-10-18
Equipment 5.0.3 at ALS (Advanced Light Source)
