Diffraction project datasets 3ppi

  • Method: Molecular Replacement
  • Resolution: 2.0 Å
  • Space group: P 21 21 2
Download all images (3.5 GB)

PDB website for 3PPI

doi:10.18430/M33PPI

Project details

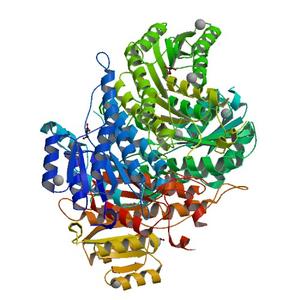

Title Crystal structure of 3-hydroxyacyl-CoA dehydrogenase type-2 from Mycobacterium avium
Authors Baugh, L., Phan, I., Begley, D.W., Clifton, M.C., Armour, B., Dranow, D.M., Taylor, B.M., Muruthi, M.M., Abendroth, J., Fairman, J.W., Fox, D., Dieterich, S.H., Staker, B.L., Gardberg, A.S., Choi, R., Hewitt, S.N., Napuli, A.J., Myers, J., Barrett, L.K., Zhang, Y., Ferrell, M., Mundt, E., Thompkins, K., Tran, N., Lyons-Abbott, S., Abramov, A., Sekar, A., Serbzhinskiy, D., Lorimer, D., Buchko, G.W., Stacy, R., Stewart, L.J., Edwards, T.E., Van Voorhis, W.C., Myler, P.J.
R / Rfree 0.15 / 0.17
Unit cell edges [Å] 118.81 x 161.15 x 65.57
Unit cell angles [°] 90.0, 90.0, 90.0

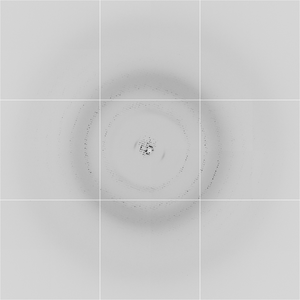

Dataset dzb0-7_2_###.img details

Number of frames 220 (1 - 220)
Distance [mm] 250.0
Oscillation width [°] 1.00
Omega [°] 260.0
Phi [°] 260.0
Wavelength [Å] 1.00000
Experiment Date 2010-07-10
Equipment 5.0.3 at ALS (Advanced Light Source)

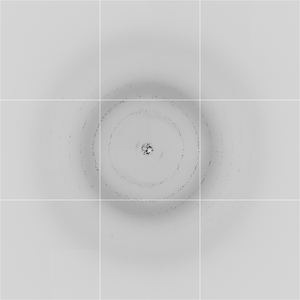

Dataset dzb0-7_3_###.img details

Number of frames 596 (1 - 596)
Distance [mm] 220.0
Oscillation width [°] 0.50
Omega [°] 260.0
Phi [°] 260.0
Wavelength [Å] 1.00000
Experiment Date 2010-07-10
Equipment 5.0.3 at ALS (Advanced Light Source)

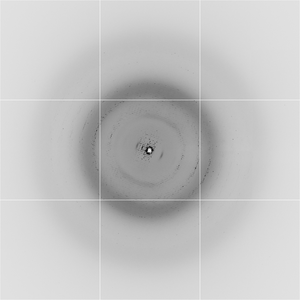

Dataset dzb0-7_4_###.img details

Number of frames 35 (1 - 35)
Distance [mm] 220.0
Oscillation width [°] 0.50
Omega [°] 260.0
Phi [°] 260.0
Wavelength [Å] 1.00000
Experiment Date 2010-07-10
Equipment 5.0.3 at ALS (Advanced Light Source)

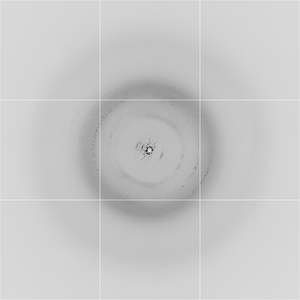

Dataset dzb0-7_5_###.img details

Number of frames 60 (1 - 60)
Distance [mm] 220.0
Oscillation width [°] 0.50
Omega [°] 260.0
Phi [°] 260.0
Wavelength [Å] 1.00000
Experiment Date 2010-07-10
Equipment 5.0.3 at ALS (Advanced Light Source)
