Diffraction project datasets 3p4j
- Resolution: 0.55 Å
- Space group: P 21 21 21
PDB website for 3P4J
PDB validation report for 3P4J
doi:10.18430/m33p4j
Project details

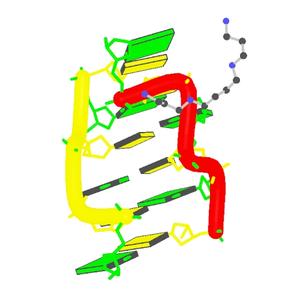

| Title | Ultra-high resolution structure of d(CGCGCG)2 Z-DNA |
| Authors | Brzezinski, K., Brzuszkiewicz, A., Dauter, M., Kubicki, M., Jaskolski, M., Dauter, Z. |
| R / Rfree | 0.08 / 0.09 |
| Unit cell edges [Å] | 17.88 x 31.42 x 43.90 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

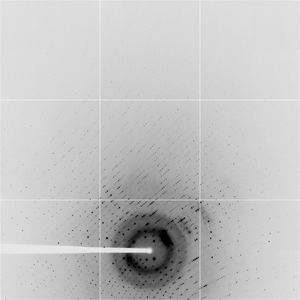

Dataset kbr12_high_1_###.img details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 125.0 |
| Oscillation width [°] | 1.00 |
| Wavelength [Å] | 0.59040 |
| Experiment Date | 2010-04-25 |
| Equipment | 24-ID-C at APS (Advanced Photon Source) |

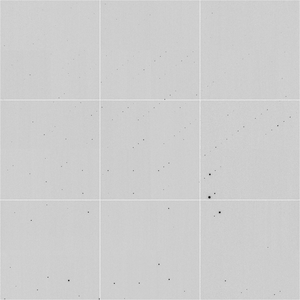

Dataset kbr12_low_1_###.img details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 500.0 |
| Oscillation width [°] | 2.00 |
| Wavelength [Å] | 0.59040 |
| Experiment Date | 2010-04-25 |
| Equipment | 24-ID-C at APS (Advanced Photon Source) |

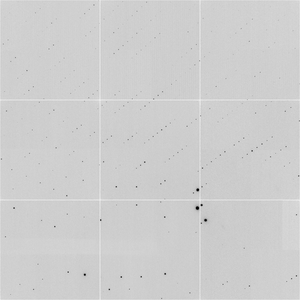

Dataset kbr12_med_1_###.img details
| Number of frames | 120 (1 - 120) |
| Distance [mm] | 400.0 |
| Oscillation width [°] | 1.50 |
| Wavelength [Å] | 0.59040 |
| Experiment Date | 2010-04-25 |
| Equipment | 24-ID-C at APS (Advanced Photon Source) |
