Diffraction project datasets 3oxk

  • Method: Fourier Synthesis
  • Resolution: 1.55 Å
  • Space group: C 2 2 21
Download all images (248.5 MB)

PDB website for 3OXK

doi:10.18430/M33OXK

Project details

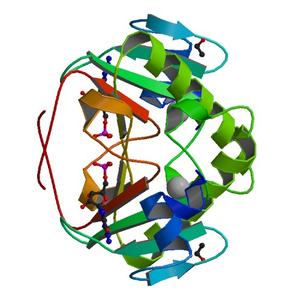

Title Crystal structure of a histidine triad family protein from Entamoeba histolytica, bound to GMP
Authors Lorimer, D.D., Choi, R., Abramov, A., Nakazawa Hewitt, S., Gardberg, A.S., Van Voorhis, W.C., Staker, B.L., Myler, P.J., Edwards, T.E.
R / Rfree 0.16 / 0.21
Unit cell edges [Å] 53.66 x 60.86 x 67.93
Unit cell angles [°] 90.0, 90.0, 90.0

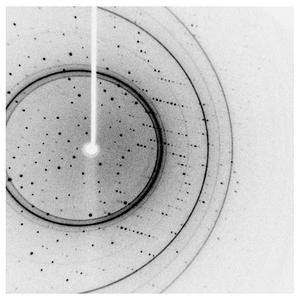

Dataset 217759b6_x####.img details

Number of frames 160 (1 - 160)
Distance [mm] 50.0
Oscillation width [°] 1.00
Omega [°] -70.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

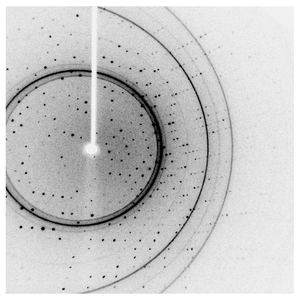

Dataset 217759b6_y####.img details

Number of frames 160 (1 - 160)
Distance [mm] 50.0
Oscillation width [°] 1.00
Omega [°] -70.0
Phi [°] -160.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)
