Diffraction project datasets 3o38

  • Method: Molecular Replacement
  • Resolution: 1.95 Å
  • Space group: P 1 21 1
Download all images (394.0 MB)

PDB website for 3O38


Project details

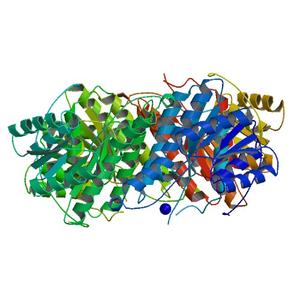

Title Crystal structure of a short chain dehydrogenase from Mycobacterium smegmatis
Authors Baugh, L., Phan, I., Begley, D.W., Clifton, M.C., Armour, B., Dranow, D.M., Taylor, B.M., Muruthi, M.M., Abendroth, J., Fairman, J.W., Fox, D., Dieterich, S.H., Staker, B.L., Gardberg, A.S., Choi, R., Hewitt, S.N., Napuli, A.J., Myers, J., Barrett, L.K., Zhang, Y., Ferrell, M., Mundt, E., Thompkins, K., Tran, N., Lyons-Abbott, S., Abramov, A., Sekar, A., Serbzhinskiy, D., Lorimer, D., Buchko, G.W., Stacy, R., Stewart, L.J., Edwards, T.E., Van Voorhis, W.C., Myler, P.J.
R / Rfree 0.16 / 0.22
Unit cell edges [Å] 77.81 x 75.72 x 80.03
Unit cell angles [°] 90.0, 102.7, 90.0

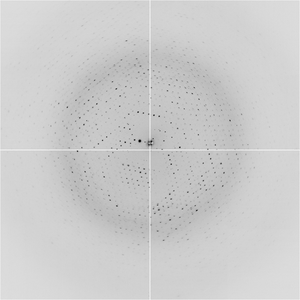

Dataset auw1_16_1_###.img details

Number of frames 199 (1 - 199)
Distance [mm] 210.0
Oscillation width [°] 1.00
Omega [°] 1.0
Phi [°] 1.0
Wavelength [Å] 0.97740
Experiment Date 2010-07-02
Equipment 5.0.1 at ALS (Advanced Light Source)
