Diffraction project datasets 3o2e
- Method: SAD
- Resolution: 1.95 Å
- Space group: P 41 21 2
PDB website for 3O2E
PDB validation report for 3O2E
doi:10.18430/M33O2E
Project details

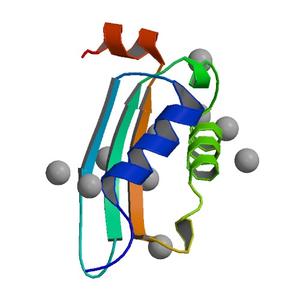

| Title | Crystal structure of a bol-like protein from babesia bovis |
| Authors | Abendroth, J., Gardberg, A.S., Robinson, J.I., Christensen, J.S., Staker, B.L., Myler, P.J., Stewart, L.J., Edwards, T.E. |
| R / Rfree | 0.18 / 0.24 |
| Unit cell edges [Å] | 66.30 x 66.30 x 35.29 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |
Dataset mnm_e_jcsg_e1_ki_ax####.img details
| Number of frames | 720 (1 - 720) |
| Distance [mm] | 45.0 |
| Oscillation width [°] | 0.25 |
| Omega [°] | -90.0 |
| Wavelength [Å] | 1.54178 |
| Equipment | HOME_SOURCE at HOME_SOURCE (Home Source) |
Dataset mnm_e_jcsg_e1_ki_ax####.img details
| Number of frames | 671 (801 - 1471) |
| Distance [mm] | 45.0 |
| Oscillation width [°] | 0.25 |
| Omega [°] | -90.0 |
| Phi [°] | 180.0 |
| Wavelength [Å] | 1.54178 |
| Equipment | HOME_SOURCE at HOME_SOURCE (Home Source) |
