Diffraction project datasets 3ng3

  • Method: MR, MR
  • Resolution: 2.15 Å
  • Space group: C 1 2 1
Download all images (1004.3 MB)

PDB website for 3NG3


Project details

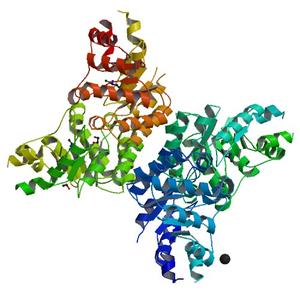

Title Crystal structure of deoxyribose phosphate aldolase from mycobacterium avium 104 in a schiff base with an unknown aldehyde
Authors Baugh, L., Phan, I., Begley, D.W., Clifton, M.C., Armour, B., Dranow, D.M., Taylor, B.M., Muruthi, M.M., Abendroth, J., Fairman, J.W., Fox, D., Dieterich, S.H., Staker, B.L., Gardberg, A.S., Choi, R., Hewitt, S.N., Napuli, A.J., Myers, J., Barrett, L.K., Zhang, Y., Ferrell, M., Mundt, E., Thompkins, K., Tran, N., Lyons-Abbott, S., Abramov, A., Sekar, A., Serbzhinskiy, D., Lorimer, D., Buchko, G.W., Stacy, R., Stewart, L.J., Edwards, T.E., Van Voorhis, W.C., Myler, P.J.
R / Rfree 0.19 / 0.23
Unit cell edges [Å] 90.48 x 116.32 x 101.28
Unit cell angles [°] 90.0, 105.8, 90.0

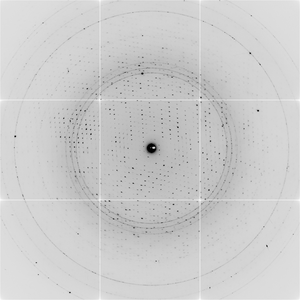

Dataset ekw2_10_1_###.img details

Number of frames 220 (1 - 220)
Distance [mm] 310.0
Oscillation width [°] 1.00
Omega [°] 90.0
Phi [°] 90.0
Wavelength [Å] 0.97740
Experiment Date 2010-05-22
Equipment 5.0.1 at ALS (Advanced Light Source)
