Diffraction project datasets 3mpz

  • Method: Molecular Replacement
  • Resolution: 1.7 Å
  • Space group: C 2 2 21
Download all images (401.9 MB)

PDB website for 3MPZ
PDB validation report for 3MPZ

doi:10.18430/M33MPZ

Project details

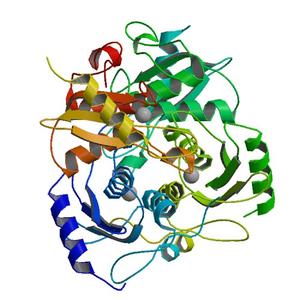

Title Crystal structure of CYTIDINE DEAMINASE from Mycobacterium smegmatis
Authors Baugh, L., Phan, I., Begley, D.W., Clifton, M.C., Armour, B., Dranow, D.M., Taylor, B.M., Muruthi, M.M., Abendroth, J., Fairman, J.W., Fox, D., Dieterich, S.H., Staker, B.L., Gardberg, A.S., Choi, R., Hewitt, S.N., Napuli, A.J., Myers, J., Barrett, L.K., Zhang, Y., Ferrell, M., Mundt, E., Thompkins, K., Tran, N., Lyons-Abbott, S., Abramov, A., Sekar, A., Serbzhinskiy, D., Lorimer, D., Buchko, G.W., Stacy, R., Stewart, L.J., Edwards, T.E., Van Voorhis, W.C., Myler, P.J.
R / Rfree 0.16 / 0.19
Unit cell edges [Å] 54.28 x 96.11 x 178.19
Unit cell angles [°] 90.0, 90.0, 90.0

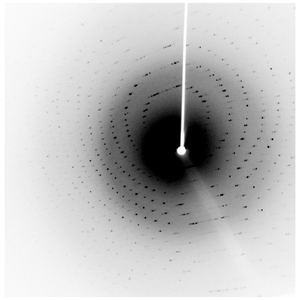

Dataset 215387e7_b####.img details

Number of frames 324 (1 - 324)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -100.0
Kappa / Chi [°] 30.0
Phi [°] 60.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)
