Diffraction project datasets 3lr5

  • Method: SAD
  • Resolution: 2.3 Å
  • Space group: P 21 21 21
Download all images (346.4 MB)

PDB website for 3LR5

doi:10.18430/M33LR5

Project details

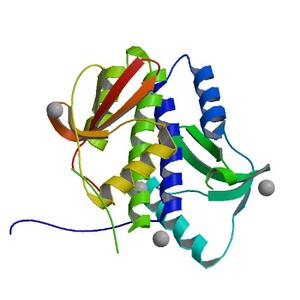

Title Periplasmic domain of the risS sensor protein from Burkholderia pseudomallei, iodide phased at neutral pH
Authors Edwards, T.E., Abendroth, J., Staker, B.L., Phan, I., Myler, P., Stacy, R., Stewart, L., Miller, S.I., Seattle Structural Genomics Center for Infectious Disease (SSGCID)
R / Rfree 0.20 / 0.25
Unit cell edges [Å] 42.04 x 76.01 x 88.68
Unit cell angles [°] 90.0, 90.0, 90.0

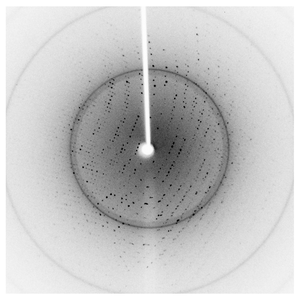

Dataset 203088f3_x####.img details

Number of frames 360 (1 - 360)
Distance [mm] 55.0
Oscillation width [°] 0.50
Omega [°] -90.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)
