Diffraction project datasets 3lr4

  • Method: SAD
  • Resolution: 1.9 Å
  • Space group: P 32 2 1
Download all images (424.1 MB)

PDB website for 3LR4

doi:10.18430/M33LR4

Project details

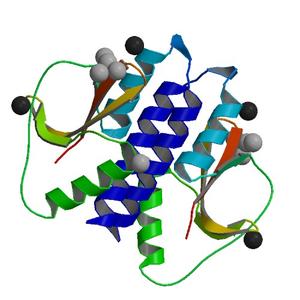

Title Periplasmic domain of the risS sensor protein from Burkholderia pseudomallei, barium phased at low pH
Authors Edwards, T.E., Abendroth, J., Staker, B.L., Phan, I., Myler, P., Stacy, R., Stewart, L., Miller, S.I., Seattle Structural Genomics Center for Infectious Disease (SSGCID)
R / Rfree 0.19 / 0.23
Unit cell edges [Å] 57.78 x 57.78 x 75.90
Unit cell angles [°] 90.0, 90.0, 120.0

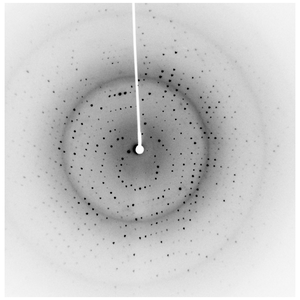

Dataset 206692g7_Ba_x####.img details

Number of frames 360 (1 - 360)
Distance [mm] 50.0
Oscillation width [°] 1.00
Omega [°] -85.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)
