Diffraction project datasets 3l43
- Resolution: 2.27 Å
- Space group: P 1 21 1
PDB website for 3L43
PDB validation report for 3L43
doi:10.18430/m33l43
Project details

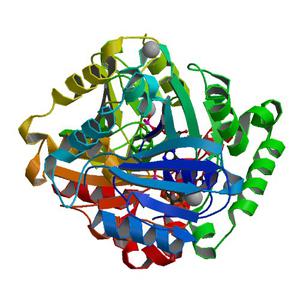

| Title | Crystal structure of the dynamin 3 GTPase domain bound with GDP |
| Authors | Yang, S., Tempel, W., Tong, Y., Nedyalkova, L., Guan, X., Crombet, L., Arrowsmith, C.H., Edwards, A.M., Bountra, C., Weigelt, J., Bochkarev, A., Park, H., Structural Genomics Consortium (SGC) |
| R / Rfree | 0.23 / 0.27 |
| Unit cell edges [Å] | 49.29 x 166.50 x 74.99 |
| Unit cell angles [°] | 90.0, 109.0, 90.0 |

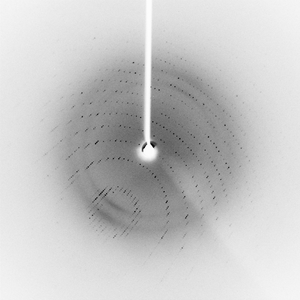

Dataset x218369_hv104_####.osc details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 180.0 |
| Oscillation width [°] | 0.50 |
| Omega [°] | -147.0 |
| Kappa / Chi [°] | 40.0 |
| Wavelength [Å] | 1.54178 |
| Experiment Date | 2009-11-20 |
| Equipment | HOME_SOURCE at HOME_SOURCE (Home Source) |
