Diffraction project datasets 3h7f

  • Method: Molecular Replacement
  • Resolution: 1.5 Å
  • Space group: P 21 21 21
Download all images (1.5 GB)

PDB website for 3H7F

doi:10.18430/M33H7F

Project details

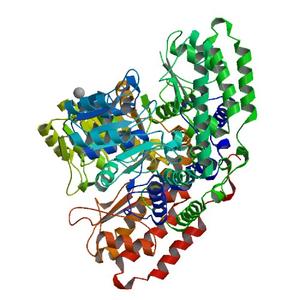

Title Crystal structure of serine hydroxymethyltransferase from Mycobacterium tuberculosis
Authors Baugh, L., Phan, I., Begley, D.W., Clifton, M.C., Armour, B., Dranow, D.M., Taylor, B.M., Muruthi, M.M., Abendroth, J., Fairman, J.W., Fox, D., Dieterich, S.H., Staker, B.L., Gardberg, A.S., Choi, R., Hewitt, S.N., Napuli, A.J., Myers, J., Barrett, L.K., Zhang, Y., Ferrell, M., Mundt, E., Thompkins, K., Tran, N., Lyons-Abbott, S., Abramov, A., Sekar, A., Serbzhinskiy, D., Lorimer, D., Buchko, G.W., Stacy, R., Stewart, L.J., Edwards, T.E., Van Voorhis, W.C., Myler, P.J.
R / Rfree 0.17 / 0.20
Unit cell edges [Å] 60.73 x 102.01 x 132.12
Unit cell angles [°] 90.0, 90.0, 90.0

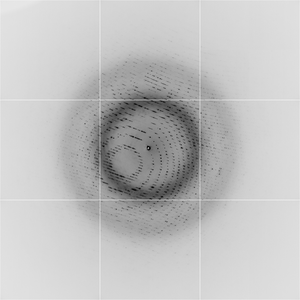

Dataset puck32-10_hr_3_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 170.0
Oscillation width [°] 0.50
Omega [°] 143.0
Phi [°] 143.0
Wavelength [Å] 0.97650
Experiment Date 2009-04-09
Equipment 5.0.3 at ALS (Advanced Light Source)

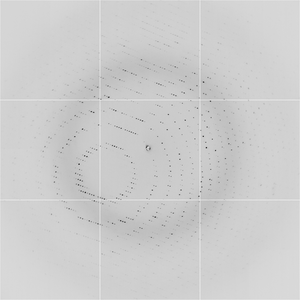

Dataset puck32-10_lr_2_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 300.0
Oscillation width [°] 0.50
Omega [°] 143.0
Phi [°] 143.0
Wavelength [Å] 0.97650
Experiment Date 2009-04-09
Equipment 5.0.3 at ALS (Advanced Light Source)
