Diffraction project datasets 33563829_1vp7
Project details
| Title |

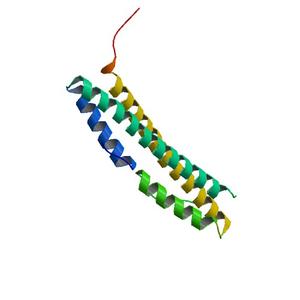

Crystal structure of Exodeoxyribonuclease VII small subunit (NP_881400.1) from Bordetella pertussis at 2.40 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.20 / 0.24 |
| Unit cell edges [Å] |
107.03 x
107.03 x
207.26
|
| Unit cell angles [°] |
90.0,
90.0,
120.0
|

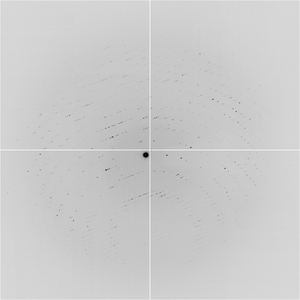

Dataset 12217_1_E1_###.img details
| Number of frames |
51 (1 - 51) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
319.0 |
| Wavelength [Å] |
1.02004 |
| Experiment Date |
2004-09-18 |
| Equipment |
8.3.1
at ALS (Advanced Light Source)
|

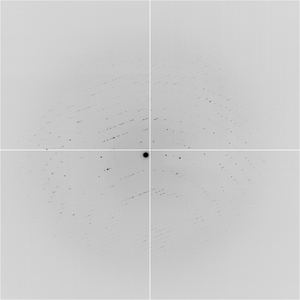

Dataset 12217_1_E2_###.img details
| Number of frames |
51 (1 - 51) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
319.0 |
| Wavelength [Å] |
0.97981 |
| Experiment Date |
2004-09-18 |
| Equipment |
8.3.1
at ALS (Advanced Light Source)
|

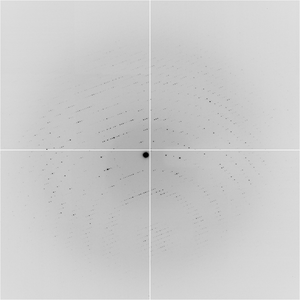

Dataset 12217_2_###.img details
| Number of frames |
70 (1 - 70) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
319.0 |
| Wavelength [Å] |
0.97969 |
| Experiment Date |
2004-09-18 |
| Equipment |
8.3.1
at ALS (Advanced Light Source)
|

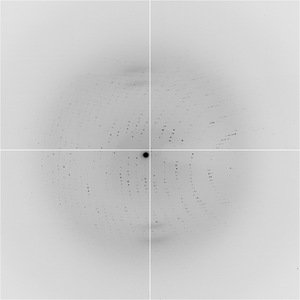

Dataset 12217_3_###.img details
| Number of frames |
40 (1 - 40) |
| Distance [mm] |
220.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
28.0 |
| Wavelength [Å] |
0.97969 |
| Experiment Date |
2004-09-18 |
| Equipment |
8.3.1
at ALS (Advanced Light Source)
|
