Diffraction project datasets 2a83
- Resolution: 1.4 Å
- Space group: P 1 21 1
PDB website for 2A83
PDB validation report for 2A83
doi:10.18430/m32a83
Project details

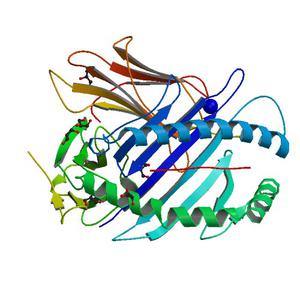

| Title | Crystal structure of hla-b*2705 complexed with the glucagon receptor (gr) peptide (residues 412-420) |
| Authors | Ruckert, C., Fiorillo, M.T., Loll, B., Moretti, R., Biesiadka, J., Saenger, W., Ziegler, A., Sorrentino, R., Uchanska-Ziegler, B. |
| R / Rfree | 0.13 / 0.15 |
| Unit cell edges [Å] | 50.98 x 82.08 x 65.32 |
| Unit cell angles [°] | 90.0, 108.7, 90.0 |

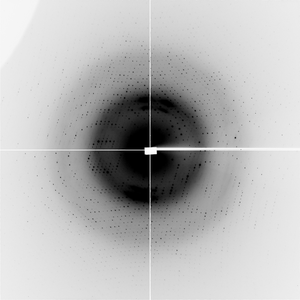

Dataset ck1-1_1_###.img details
| Number of frames | 113 (1 - 113) |
| Distance [mm] | 120.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | 80.0 |
| Phi [°] | 80.0 |
| Wavelength [Å] | 0.93300 |
| Experiment Date | 2003-07-19 |
| Equipment | ID14-2 at ESRF (European Synchrotron Radiation Facility) |
