Diffraction project datasets 29342463_1vpy

  • Method: MAD
  • Resolution: 2.52 Å
  • Space group: P 65
Download all images (1.4 GB)

PDB website for 1VPY
PDB validation report for 1VPY

doi:10.18430/M31VPY

Project details

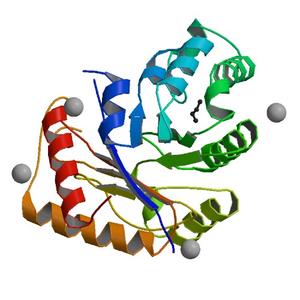

Title CRYSTAL STRUCTURE OF a DUF72 family protein (EF0366) FROM ENTEROCOCCUS FAECALIS V583 AT 2.52 A RESOLUTION
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.23 / 0.26
Unit cell edges [Å] 114.08 x 114.08 x 52.31
Unit cell angles [°] 90.0, 90.0, 120.0

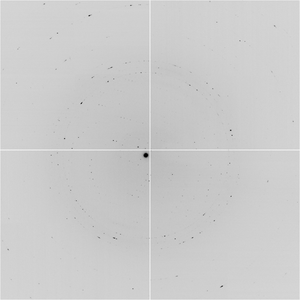

Dataset 11859_1_E1_###.img details

Number of frames 105 (1 - 105)
Distance [mm] 225.0
Oscillation width [°] 1.00
Phi [°] 322.0
Wavelength [Å] 0.97969
Experiment Date 2004-08-27
Equipment 8.3.1 at ALS (Advanced Light Source)

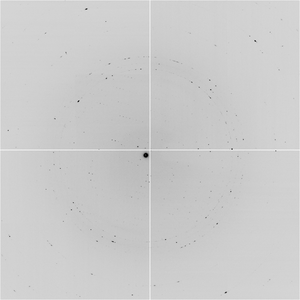

Dataset 11859_1_E2_###.img details

Number of frames 105 (1 - 105)
Distance [mm] 225.0
Oscillation width [°] 1.00
Phi [°] 322.0
Wavelength [Å] 1.01986
Experiment Date 2004-08-27
Equipment 8.3.1 at ALS (Advanced Light Source)

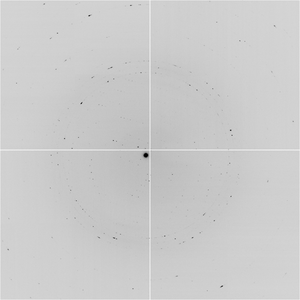

Dataset 11859_1_E3_###.img details

Number of frames 105 (1 - 105)
Distance [mm] 225.0
Oscillation width [°] 1.00
Phi [°] 322.0
Wavelength [Å] 0.97957
Experiment Date 2004-08-27
Equipment 8.3.1 at ALS (Advanced Light Source)
