Diffraction project datasets 2636623_2gd9

  • Method: MAD
  • Resolution: 2.3 Å
  • Space group: P 43
Download all images (493.5 MB)

PDB website for 2GD9

doi:10.18430/M32GD9

Project details

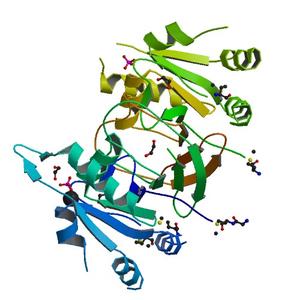

Title Crystal structure of a putative dihydrofolate reductase (bsu40760, yyap) from bacillus subtilis at 2.30 A resolution
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.21 / 0.25
Unit cell edges [Å] 64.92 x 64.92 x 143.65
Unit cell angles [°] 90.0, 90.0, 90.0

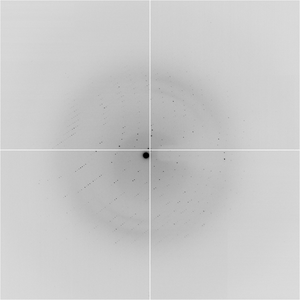

Dataset 19466_1_E1_###.img details

Number of frames 90 (1 - 90)
Distance [mm] 200.0
Oscillation width [°] 1.00
Phi [°] 150.0
Wavelength [Å] 0.97972
Experiment Date 2005-10-12
Equipment 8.3.1 at ALS (Advanced Light Source)

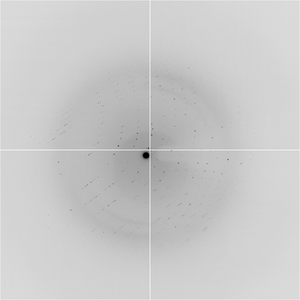

Dataset 19466_1_E2_###.img details

Number of frames 90 (1 - 90)
Distance [mm] 200.0
Oscillation width [°] 1.00
Phi [°] 150.0
Wavelength [Å] 1.01987
Experiment Date 2005-10-12
Equipment 8.3.1 at ALS (Advanced Light Source)
