Diffraction project datasets 2635576_2q83
- Method: MAD
- Resolution: 2.5 Å
- Space group: P 64 2 2
PDB website for 2Q83
doi:10.18430/M32Q83
Project details

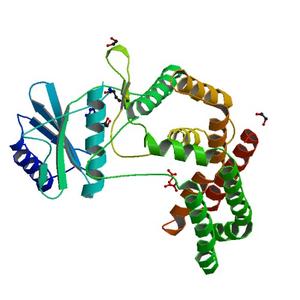

| Title | Crystal structure of ytaA (2635576) from Bacillus subtilis at 2.50 A resolution |
| Authors | Scheeff, E.D., Axelrod, H.L., Miller, M.D., Chiu, H.J., Deacon, A.M., Wilson, I.A., Manning, G. |
| R / Rfree | 0.20 / 0.21 |
| Unit cell edges [Å] | 173.00 x 173.00 x 192.57 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

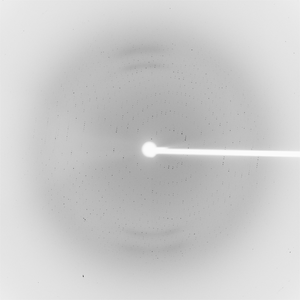

Dataset 48960_1_E1_###.mccd details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 400.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 179.0 |
| Wavelength [Å] | 0.97932 |
| Experiment Date | 2007-05-04 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

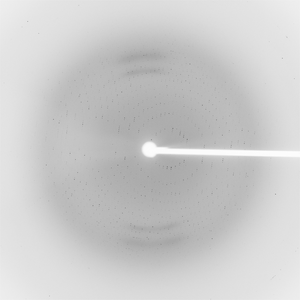

Dataset 48960_1_E2_###.mccd details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 400.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 179.0 |
| Wavelength [Å] | 0.91837 |
| Experiment Date | 2007-05-04 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

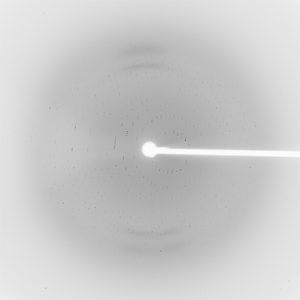

Dataset 48960_2_###.mccd details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 400.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 179.0 |
| Wavelength [Å] | 0.97904 |
| Experiment Date | 2007-05-04 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
