Diffraction project datasets 2633731_2fea
- Method: MAD
- Resolution: 2.0 Å
- Space group: P 1 21 1
PDB website for 2FEA
PDB validation report for 2FEA
doi:10.18430/M32FEA
Project details

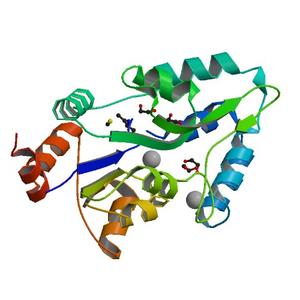

| Title | Crystal structure of MtnX phosphatase from Bacillus Subtilis at 2.00 A resolution |
| Authors | Xu, Q., Saikatendu, K.S., Krishna, S.S., McMullan, D., Abdubek, P., Agarwalla, S., Ambing, E., Astakhova, T., Axelrod, H.L., Carlton, D., Chiu, H.J., Clayton, T., DiDonato, M., Duan, L., Elsliger, M.A., Feuerhelm, J., Grzechnik, S.K., Hale, J., Hampton, E., Han, G.W., Haugen, J., Jaroszewski, L., Jin, K.K., Klock, H.E., Knuth, M.W., Koesema, E., Miller, M.D., Morse, A.T., Nigoghossian, E., Okach, L., Oommachen, S., Paulsen, J., Reyes, R., Rife, C.L., Schwarzenbacher, R., van den Bedem, H., White, A., Wolf, G., Hodgson, K.O., Wooley, J., Deacon, A.M., Godzik, A., Lesley, S.A., Wilson, I.A. |
| Bioentity | None |
| R / Rfree | 0.16 / 0.22 |
| Unit cell edges [Å] | 59.01 x 43.10 x 109.55 |
| Unit cell angles [°] | 90.0, 98.9, 90.0 |

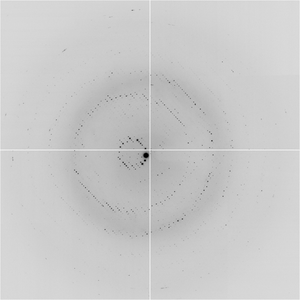

Dataset 19456_1_E1_###.img details
| Number of frames | 95 (1 - 95) |
| Distance [mm] | 180.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 348.0 |
| Wavelength [Å] | 0.97974 |
| Experiment Date | 2005-10-12 |
| Equipment | 8.3.1 at ALS (Advanced Light Source) |

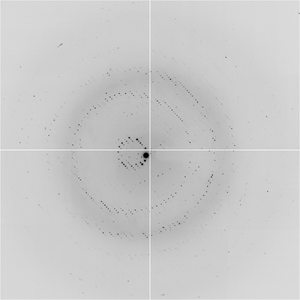

Dataset 19456_1_E2_###.img details
| Number of frames | 95 (1 - 95) |
| Distance [mm] | 180.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 348.0 |
| Wavelength [Å] | 1.01987 |
| Experiment Date | 2005-10-12 |
| Equipment | 8.3.1 at ALS (Advanced Light Source) |

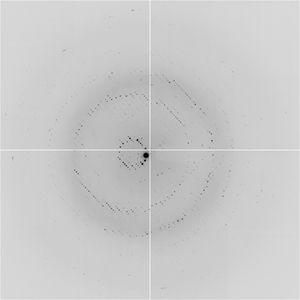

Dataset 19456_2_###.img details
| Number of frames | 95 (1 - 95) |
| Distance [mm] | 180.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 348.0 |
| Wavelength [Å] | 0.97963 |
| Experiment Date | 2005-10-12 |
| Equipment | 8.3.1 at ALS (Advanced Light Source) |

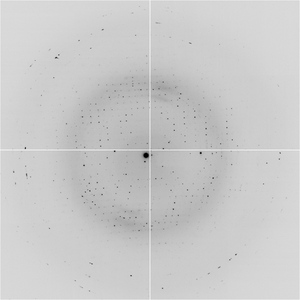

Dataset 19456_3_E1_###.img details
| Number of frames | 95 (1 - 95) |
| Distance [mm] | 180.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 83.0 |
| Wavelength [Å] | 0.97974 |
| Experiment Date | 2005-10-12 |
| Equipment | 8.3.1 at ALS (Advanced Light Source) |

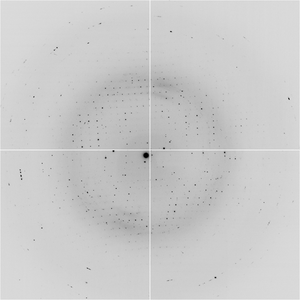

Dataset 19456_3_E2_###.img details
| Number of frames | 95 (1 - 95) |
| Distance [mm] | 180.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 83.0 |
| Wavelength [Å] | 1.01987 |
| Experiment Date | 2005-10-12 |
| Equipment | 8.3.1 at ALS (Advanced Light Source) |

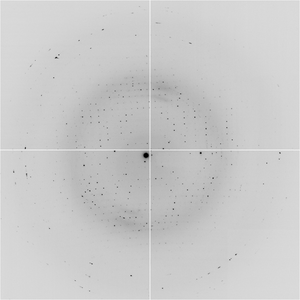

Dataset 19456_4_###.img details
| Number of frames | 95 (1 - 95) |
| Distance [mm] | 180.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 83.0 |
| Wavelength [Å] | 0.97963 |
| Experiment Date | 2005-10-12 |
| Equipment | 8.3.1 at ALS (Advanced Light Source) |
