Diffraction project datasets 2632848_3bem

  • Method: MAD
  • Resolution: 1.65 Å
  • Space group: P 1 21 1
Download all images (7.5 GB)

PDB website for 3BEM

doi:10.18430/M33BEM

Project details

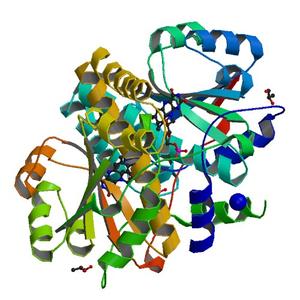

Title Crystal structure of putative nitroreductase ydfN (2632848) from Bacillus subtilis at 1.65 A resolution
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.15 / 0.18
Unit cell edges [Å] 51.62 x 69.20 x 61.85
Unit cell angles [°] 90.0, 100.5, 90.0

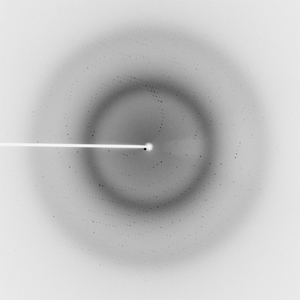

Dataset 63791_1_E1.#### details

Number of frames 180 (1 - 180)
Distance [mm] 220.0
Oscillation width [°] 1.00
Phi [°] 138.0
Wavelength [Å] 0.97953
Experiment Date 2007-10-26
Equipment 23-ID-D at APS (Advanced Photon Source)

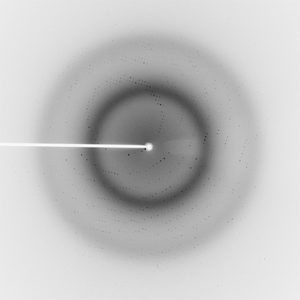

Dataset 63791_1_E2.#### details

Number of frames 180 (1 - 180)
Distance [mm] 220.0
Oscillation width [°] 1.00
Phi [°] 138.0
Wavelength [Å] 0.91840
Experiment Date 2007-10-26
Equipment 23-ID-D at APS (Advanced Photon Source)

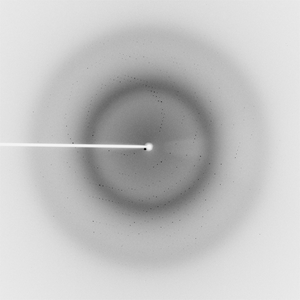

Dataset 63791_2.#### details

Number of frames 180 (1 - 180)
Distance [mm] 220.0
Oscillation width [°] 1.00
Phi [°] 138.0
Wavelength [Å] 0.97939
Experiment Date 2007-10-26
Equipment 23-ID-D at APS (Advanced Photon Source)
