Diffraction project datasets 23130561_3msq

  • Method: MAD
  • Resolution: 2.85 Å
  • Space group: P 2 2 21
Download all images (3.9 GB)

PDB website for 3MSQ
PDB validation report for 3MSQ

doi:10.18430/M33MSQ

Project details

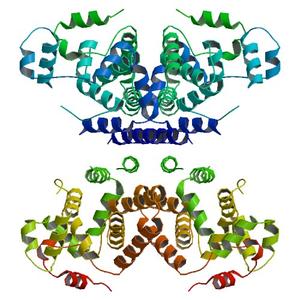

Title Crystal structure of a Putative ubiquinone biosynthesis protein (Npun02000094) from Nostoc punctiforme PCC 73102 at 2.85 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.20 / 0.22
Unit cell edges [Å] 81.72 x 82.03 x 187.64
Unit cell angles [°] 90.0, 90.0, 90.0

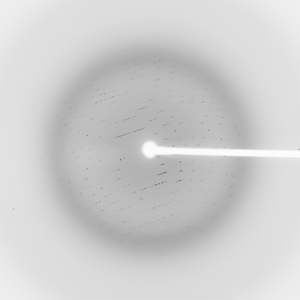

Dataset 86197_1_E1_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 350.0
Oscillation width [°] 1.00
Phi [°] 265.0
Wavelength [Å] 0.97937
Experiment Date 2008-06-15
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

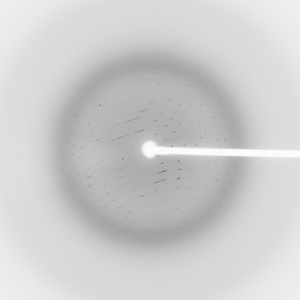

Dataset 86197_1_E2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 350.0
Oscillation width [°] 1.00
Phi [°] 265.0
Wavelength [Å] 0.91837
Experiment Date 2008-06-15
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

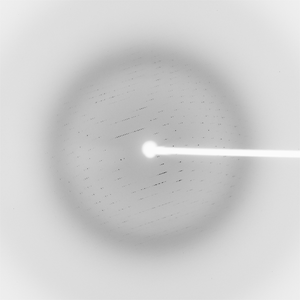

Dataset 86197_2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 350.0
Oscillation width [°] 1.00
Phi [°] 265.0
Wavelength [Å] 0.97882
Experiment Date 2008-06-15
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
