Diffraction project datasets 1790429_2gb5
Project details
| Title |

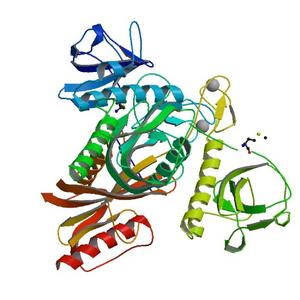

Crystal structure of NADH pyrophosphatase (EC 3.6.1.22) (1790429) from Escherichia coli K12 at 2.30 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| R / Rfree |
0.20 / 0.25 |
| Unit cell edges [Å] |
99.29 x
103.55 x
57.27
|
| Unit cell angles [°] |
90.0,
90.0,
90.0
|

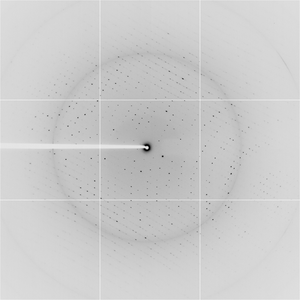

Dataset T1852_1_E1_###.img details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
360.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
92.0 |
| Wavelength [Å] |
0.98020 |
| Experiment Date |
2003-10-18 |
| Equipment |
8.2.2
at ALS (Advanced Light Source)
|

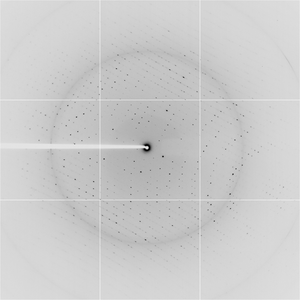

Dataset T1852_1_E2_###.img details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
360.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
92.0 |
| Wavelength [Å] |
1.00000 |
| Experiment Date |
2003-10-18 |
| Equipment |
8.2.2
at ALS (Advanced Light Source)
|

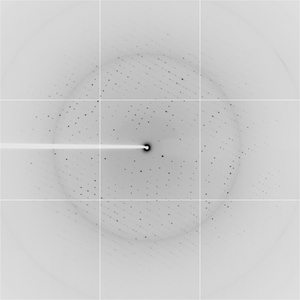

Dataset T1852_2_###.img details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
360.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
92.0 |
| Wavelength [Å] |
0.97390 |
| Experiment Date |
2003-10-18 |
| Equipment |
8.2.2
at ALS (Advanced Light Source)
|

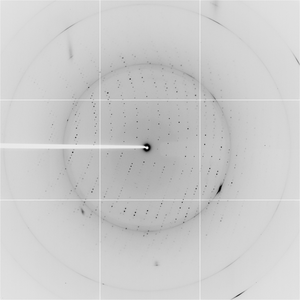

Dataset T1852_3_###.img details
| Number of frames |
160 (1 - 160) |
| Distance [mm] |
320.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
182.0 |
| Wavelength [Å] |
0.98000 |
| Experiment Date |
2003-10-18 |
| Equipment |
8.2.2
at ALS (Advanced Light Source)
|
