Diffraction project datasets 17135349_1z8h
Project details
| Title |

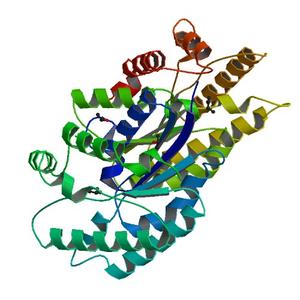

CRYSTAL STRUCTURE OF a GDSL-like lipase (ALR1529) FROM NOSTOC SP. PCC 7120 AT 2.02 A RESOLUTION |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.16 / 0.20 |
| Unit cell edges [Å] |
64.50 x
69.81 x
211.03
|
| Unit cell angles [°] |
90.0,
90.0,
90.0
|

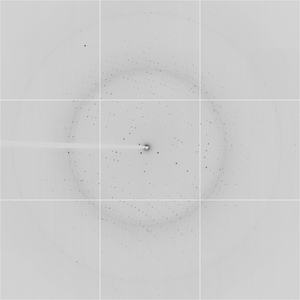

Dataset T1588-822_101_E1_###.img details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
275.0 |
| Wavelength [Å] |
0.97870 |
| Experiment Date |
2003-08-31 |
| Equipment |
8.2.2
at ALS (Advanced Light Source)
|

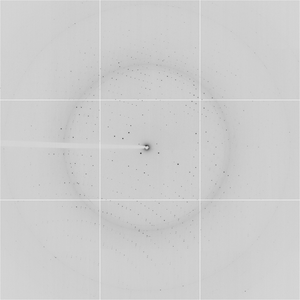

Dataset T1588-822_101_E2_###.img details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
275.0 |
| Wavelength [Å] |
1.03320 |
| Experiment Date |
2003-08-31 |
| Equipment |
8.2.2
at ALS (Advanced Light Source)
|

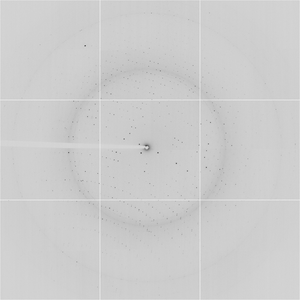

Dataset T1588-822_101_E3_###.img details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
275.0 |
| Wavelength [Å] |
0.97840 |
| Experiment Date |
2003-08-31 |
| Equipment |
8.2.2
at ALS (Advanced Light Source)
|

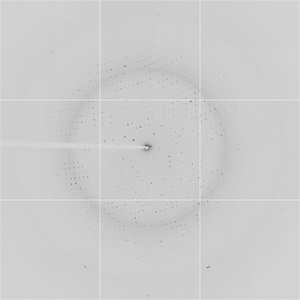

Dataset T1588-822_102_E1_###.img details
| Number of frames |
80 (1 - 80) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
365.0 |
| Wavelength [Å] |
0.97870 |
| Experiment Date |
2003-08-31 |
| Equipment |
8.2.2
at ALS (Advanced Light Source)
|

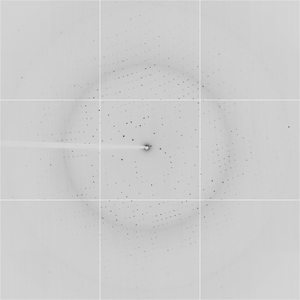

Dataset T1588-822_102_E2_###.img details
| Number of frames |
80 (1 - 80) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
365.0 |
| Wavelength [Å] |
1.03320 |
| Experiment Date |
2003-08-31 |
| Equipment |
8.2.2
at ALS (Advanced Light Source)
|

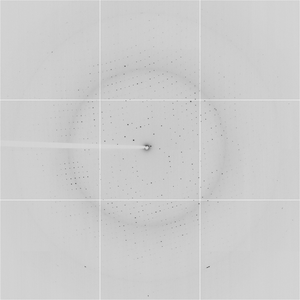

Dataset T1588-822_102_E3_###.img details
| Number of frames |
80 (1 - 80) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
365.0 |
| Wavelength [Å] |
0.97840 |
| Experiment Date |
2003-08-31 |
| Equipment |
8.2.2
at ALS (Advanced Light Source)
|

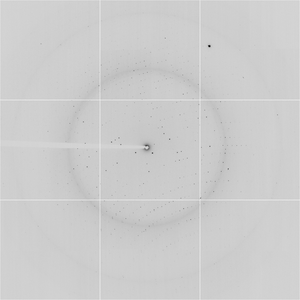

Dataset T1588-822_1_E1_###.img details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
95.0 |
| Wavelength [Å] |
0.97870 |
| Experiment Date |
2003-08-31 |
| Equipment |
8.2.2
at ALS (Advanced Light Source)
|

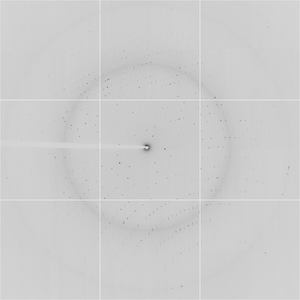

Dataset T1588-822_1_E2_###.img details
| Number of frames |
173 (8 - 180) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
98.5 |
| Wavelength [Å] |
1.03320 |
| Experiment Date |
2003-08-31 |
| Equipment |
8.2.2
at ALS (Advanced Light Source)
|

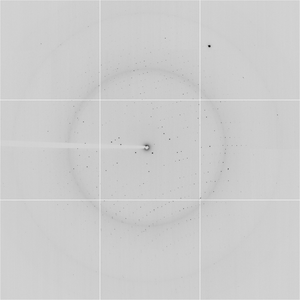

Dataset T1588-822_1_E3_###.img details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
95.0 |
| Wavelength [Å] |
0.97840 |
| Experiment Date |
2003-08-31 |
| Equipment |
8.2.2
at ALS (Advanced Light Source)
|

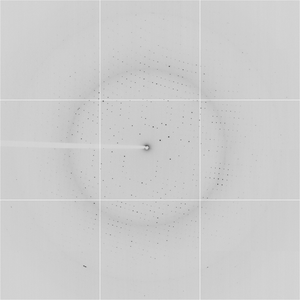

Dataset T1588-822_2_E1_###.img details
| Number of frames |
88 (1 - 88) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
185.0 |
| Wavelength [Å] |
0.97870 |
| Experiment Date |
2003-08-31 |
| Equipment |
8.2.2
at ALS (Advanced Light Source)
|

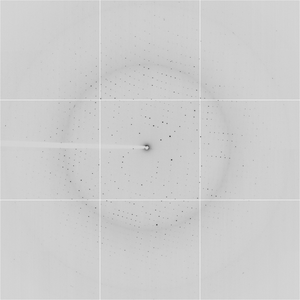

Dataset T1588-822_2_E2_###.img details
| Number of frames |
80 (1 - 80) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
185.0 |
| Wavelength [Å] |
1.03320 |
| Experiment Date |
2003-08-31 |
| Equipment |
8.2.2
at ALS (Advanced Light Source)
|

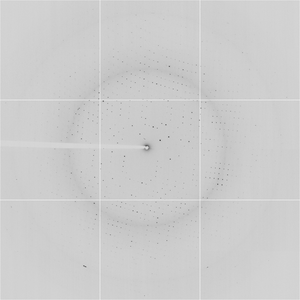

Dataset T1588-822_2_E3_###.img details
| Number of frames |
80 (1 - 80) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
185.0 |
| Wavelength [Å] |
0.97840 |
| Experiment Date |
2003-08-31 |
| Equipment |
8.2.2
at ALS (Advanced Light Source)
|
