Diffraction project datasets 17130499_1vqu

  • Method: Molecular Replacement
  • Resolution: 1.85 Å
  • Space group: P 1 21 1
Download all images (2.3 GB)

PDB website for 1VQU

doi:10.18430/M31VQU

Project details

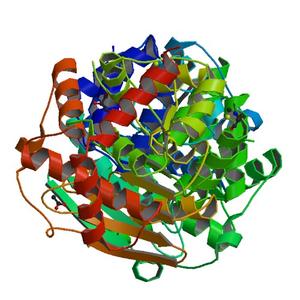

Title Crystal structure of Anthranilate phosphoribosyltransferase 2 (17130499) from Nostoc sp. at 1.85 A resolution
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.18 / 0.22
Unit cell edges [Å] 67.56 x 47.23 x 99.38
Unit cell angles [°] 90.0, 92.7, 90.0

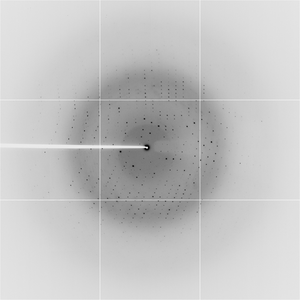

Dataset T1456_1_###.img details

Number of frames 100 (1 - 100)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 10.0
Wavelength [Å] 1.00000
Experiment Date 2003-10-19
Equipment 8.2.2 at ALS (Advanced Light Source)

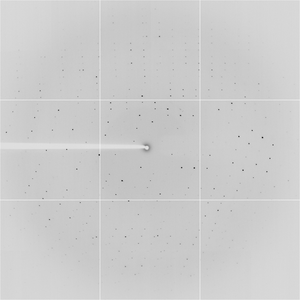

Dataset T1456_5_###.img details

Number of frames 50 (1 - 50)
Distance [mm] 450.0
Oscillation width [°] 2.00
Phi [°] 10.0
Wavelength [Å] 1.00000
Experiment Date 2003-10-19
Equipment 8.2.2 at ALS (Advanced Light Source)
