Diffraction project datasets 16740816_1vlr

  • Method: Molecular Replacement
  • Resolution: 1.83 Å
  • Space group: P 1 21 1
Download all images (2.6 GB)

PDB website for 1VLR

doi:10.18430/M31VLR

Project details

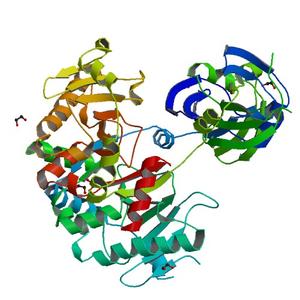

Title Crystal structure of mRNA decapping enzyme (DcpS) from Mus musculus at 1.83 A resolution
Authors Han, G.W., Schwarzenbacher, R., McMullan, D., Abdubek, P., Ambing, E., Axelrod, H., Biorac, T., Canaves, J.M., Chiu, H.J., Dai, X., Deacon, A.M., DiDonato, M., Elsliger, M.A., Godzik, A., Grittini, C., Grzechnik, S.K., Hale, J., Hampton, E., Haugen, J., Hornsby, M., Jaroszewski, L., Klock, H.E., Koesema, E., Kreusch, A., Kuhn, P., Lesley, S.A., McPhillips, T.M., Miller, M.D., Moy, K., Nigoghossian, E., Paulsen, J., Quijano, K., Reyes, R., Spraggon, G., Stevens, R.C., van den Bedem, H., Velasquez, J., Vincent, J., White, A., Wolf, G., Xu, Q., Hodgson, K.O., Wooley, J., Wilson, I.A.
R / Rfree 0.16 / 0.20
Unit cell edges [Å] 65.40 x 59.23 x 100.14
Unit cell angles [°] 90.0, 103.8, 90.0

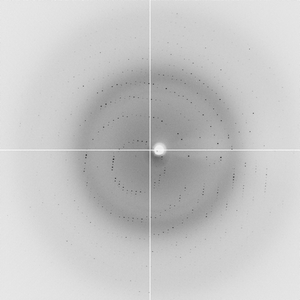

Dataset 7275_2_###.img details

Number of frames 220 (1 - 220)
Distance [mm] 160.0
Oscillation width [°] 0.50
Phi [°] 27.0
Wavelength [Å] 1.00000
Experiment Date 2003-10-08
Equipment 5.0.3 at ALS (Advanced Light Source)

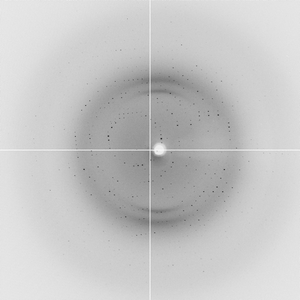

Dataset 7275_3_###.img details

Number of frames 140 (1 - 140)
Distance [mm] 160.0
Oscillation width [°] 0.50
Phi [°] 137.0
Wavelength [Å] 1.00000
Experiment Date 2003-10-08
Equipment 5.0.3 at ALS (Advanced Light Source)
