Diffraction project datasets 16423107_2a3n
Project details
| Title |

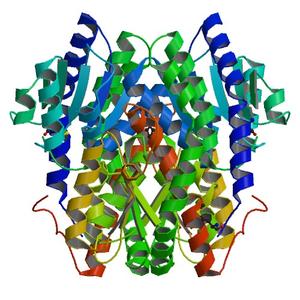

Crystal structure of a putative glucosamine-fructose-6-phosphate aminotransferase (stm4540.s) from salmonella typhimurium lt2 at 1.35 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.11 / 0.14 |
| Unit cell edges [Å] |
81.22 x
102.61 x
49.30
|
| Unit cell angles [°] |
90.0,
123.2,
90.0
|

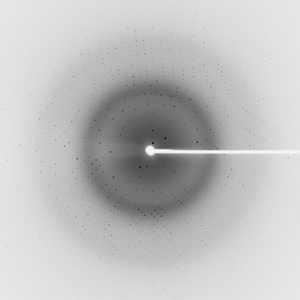

Dataset 16424_1_E1_###.mccd details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
230.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
47.0 |
| Wavelength [Å] |
0.97932 |
| Experiment Date |
2005-06-05 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

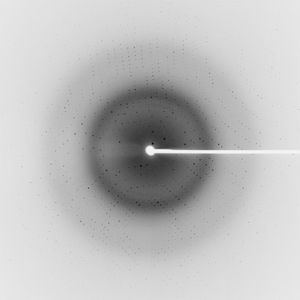

Dataset 16424_1_E2_###.mccd details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
230.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
47.0 |
| Wavelength [Å] |
0.91162 |
| Experiment Date |
2005-06-05 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

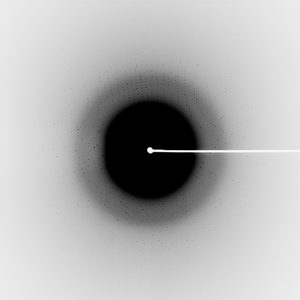

Dataset 16424_2_###.mccd details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
150.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
47.0 |
| Wavelength [Å] |
0.97920 |
| Experiment Date |
2005-06-05 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

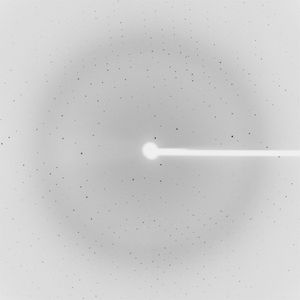

Dataset 16424_3_###.mccd details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
400.0 |
| Oscillation width [°] |
2.00 |
| Phi [°] |
47.0 |
| Wavelength [Å] |
0.97920 |
| Experiment Date |
2005-06-05 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
