Diffraction project datasets 16420133_2i6g

  • Method: MAD
  • Resolution: 1.9 Å
  • Space group: P 21 21 2
Download all images (4.4 GB)

PDB website for 2I6G
PDB validation report for 2I6G

doi:10.18430/M32I6G

Project details

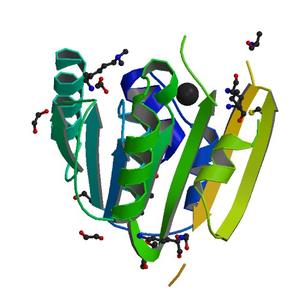

Title Crystal structure of a putative methyltransferase (tehb, stm1608) from salmonella typhimurium lt2 at 1.90 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.19 / 0.23
Unit cell edges [Å] 100.89 x 60.15 x 72.25
Unit cell angles [°] 90.0, 90.0, 90.0

Dataset 27867_1_E1_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 275.0
Oscillation width [°] 1.00
Phi [°] 106.0
Wavelength [Å] 0.97927
Experiment Date 2006-07-02
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

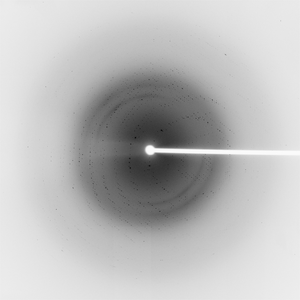

Dataset 27867_1_E2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 275.0
Oscillation width [°] 1.00
Phi [°] 106.0
Wavelength [Å] 0.91837
Experiment Date 2006-07-02
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

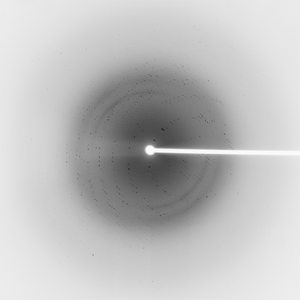

Dataset 27867_2_###.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 275.0
Oscillation width [°] 1.00
Phi [°] 106.0
Wavelength [Å] 0.97913
Experiment Date 2006-07-02
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
