Diffraction project datasets 16411704_2g0w

  • Method: MAD
  • Resolution: 1.7 Å
  • Space group: P 1 21 1
Download all images (2.2 GB)

PDB website for 2G0W

doi:10.18430/M32G0W

Project details

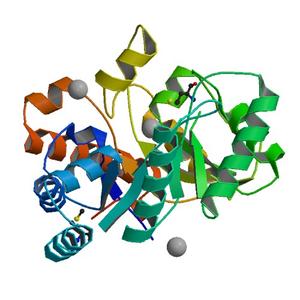

Title CRYSTAL STRUCTURE OF A PUTATIVE SUGAR ISOMERASE (LMO2234) FROM LISTERIA MONOCYTOGENES AT 1.70 A RESOLUTION
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.19 / 0.24
Unit cell edges [Å] 62.83 x 61.25 x 70.43
Unit cell angles [°] 90.0, 91.1, 90.0

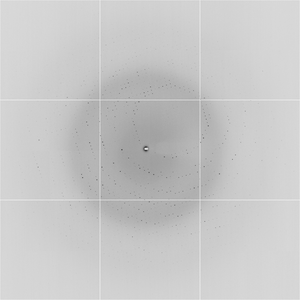

Dataset 20370_1_E1_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 154.0
Wavelength [Å] 0.97970
Experiment Date 2005-12-15
Equipment 8.2.2 at ALS (Advanced Light Source)

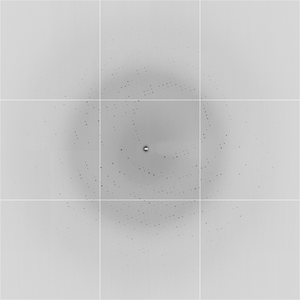

Dataset 20370_1_E2_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 154.0
Wavelength [Å] 0.99990
Experiment Date 2005-12-15
Equipment 8.2.2 at ALS (Advanced Light Source)
