Diffraction project datasets 1591455_3d7i

  • Method: MAD
  • Resolution: 1.75 Å
  • Space group: C 2 2 21
Download all images (7.5 GB)

PDB website for 3D7I

doi:10.18430/M33D7I

Project details

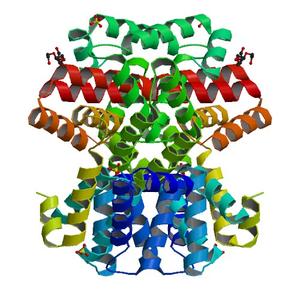

Title Crystal structure of carboxymuconolactone decarboxylase family protein possibly involved in oxygen detoxification (1591455) from METHANOCOCCUS JANNASCHII at 1.75 A resolution
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.17 / 0.20
Unit cell edges [Å] 73.57 x 92.67 x 111.24
Unit cell angles [°] 90.0, 90.0, 90.0

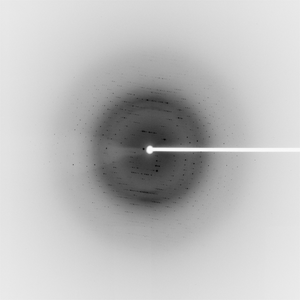

Dataset 84354_1_E1_###.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 200.0
Oscillation width [°] 1.00
Phi [°] 272.0
Wavelength [Å] 0.97929
Experiment Date 2008-05-01
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

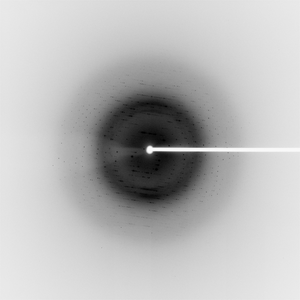

Dataset 84354_1_E2_###.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 200.0
Oscillation width [°] 1.00
Phi [°] 272.0
Wavelength [Å] 0.91162
Experiment Date 2008-05-01
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

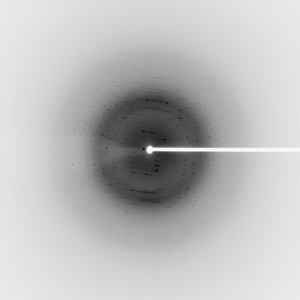

Dataset 84354_2_###.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 200.0
Oscillation width [°] 1.00
Phi [°] 272.0
Wavelength [Å] 0.97907
Experiment Date 2008-05-01
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

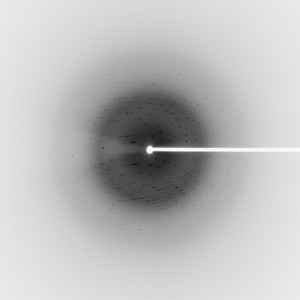

Dataset 84354_3_E1_###.mccd details

Number of frames 60 (1 - 60)
Distance [mm] 200.0
Oscillation width [°] 1.00
Phi [°] 32.0
Wavelength [Å] 0.97929
Experiment Date 2008-05-01
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

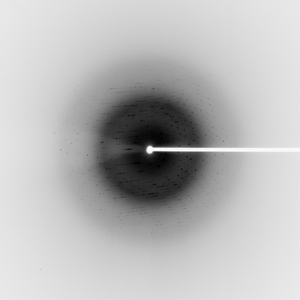

Dataset 84354_3_E2_###.mccd details

Number of frames 60 (1 - 60)
Distance [mm] 200.0
Oscillation width [°] 1.00
Phi [°] 32.0
Wavelength [Å] 0.91162
Experiment Date 2008-05-01
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

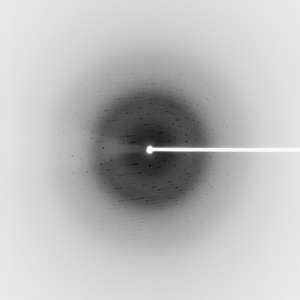

Dataset 84354_4_###.mccd details

Number of frames 60 (1 - 60)
Distance [mm] 200.0
Oscillation width [°] 1.00
Phi [°] 32.0
Wavelength [Å] 0.97907
Experiment Date 2008-05-01
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
