Diffraction project datasets 15162326_2fno
- Method: MAD
- Resolution: 2.0 Å
- Space group: C 1 2 1
PDB website for 2FNO
PDB validation report for 2FNO
doi:10.18430/M32FNO
Project details

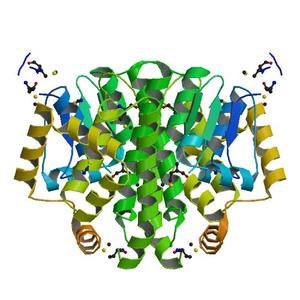

| Title | Crystal structure of a glutathione s-transferase (atu5508) from agrobacterium tumefaciens str. c58 at 2.00 A resolution |
| Authors | Kosloff, M., Han, G.W., Krishna, S.S., Schwarzenbacher, R., Fasnacht, M., Elsliger, M.A., Abdubek, P., Agarwalla, S., Ambing, E., Astakhova, T., Axelrod, H.L., Canaves, J.M., Carlton, D., Chiu, H.J., Clayton, T., DiDonato, M., Duan, L., Feuerhelm, J., Grittini, C., Grzechnik, S.K., Hale, J., Hampton, E., Haugen, J., Jaroszewski, L., Jin, K.K., Johnson, H., Klock, H.E., Knuth, M.W., Koesema, E., Kreusch, A., Kuhn, P., Levin, I., McMullan, D., Miller, M.D., Morse, A.T., Moy, K., Nigoghossian, E., Okach, L., Oommachen, S., Page, R., Paulsen, J., Quijano, K., Reyes, R., Rife, C.L., Sims, E., Spraggon, G., Sridhar, V., Stevens, R.C., van den Bedem, H., Velasquez, J., White, A., Wolf, G., Xu, Q., Hodgson, K.O., Wooley, J., Deacon, A.M., Godzik, A., Lesley, S.A., Wilson, I.A. |
| Bioentity | None |
| R / Rfree | 0.18 / 0.22 |
| Unit cell edges [Å] | 110.20 x 50.26 x 117.66 |
| Unit cell angles [°] | 90.0, 115.7, 90.0 |

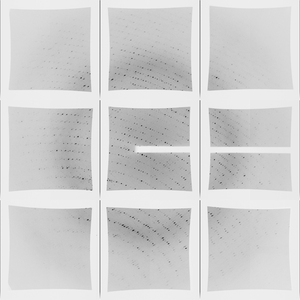

Dataset T2664_PeakH_1.#### details
| Number of frames | 450 (1 - 450) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 0.40 |
| Omega [°] | -95.0 |
| Phi [°] | -0.01 |
| Wavelength [Å] | 0.97913 |
| Experiment Date | 2004-02-23 |
| Equipment | 19-BM at APS (Advanced Photon Source) |

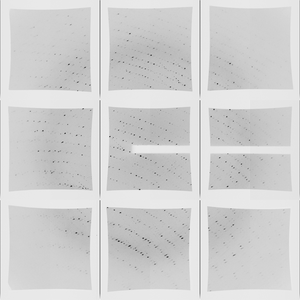

Dataset T2664_infl_1.#### details
| Number of frames | 300 (1 - 300) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 0.50 |
| Omega [°] | -95.0 |
| Phi [°] | -0.01 |
| Wavelength [Å] | 0.97929 |
| Experiment Date | 2004-02-23 |
| Equipment | 19-BM at APS (Advanced Photon Source) |

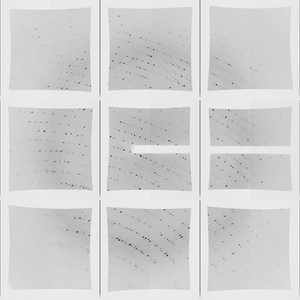

Dataset T2664_remo_1.#### details
| Number of frames | 400 (1 - 400) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 0.50 |
| Omega [°] | -95.0 |
| Phi [°] | -0.01 |
| Wavelength [Å] | 0.96406 |
| Experiment Date | 2004-02-23 |
| Equipment | 19-BM at APS (Advanced Photon Source) |

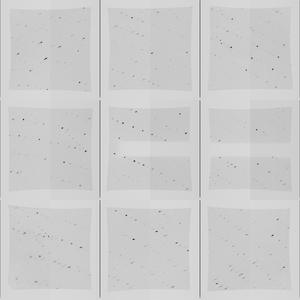

Dataset T2664_remo_2.#### details
| Number of frames | 190 (1 - 190) |
| Distance [mm] | 450.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -95.0 |
| Phi [°] | -0.01 |
| Wavelength [Å] | 0.96406 |
| Experiment Date | 2004-02-23 |
| Equipment | 19-BM at APS (Advanced Photon Source) |
