Diffraction project datasets 15155668_2ghs
Project details
| Title |

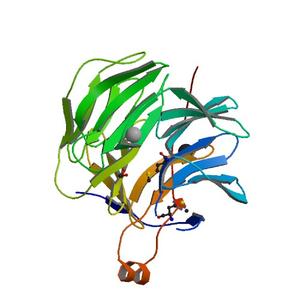

CRYSTAL STRUCTURE OF A CALCIUM-BINDING PROTEIN, REGUCALCIN (AGR_C_1268) FROM AGROBACTERIUM TUMEFACIENS STR. C58 AT 1.55 A RESOLUTION |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.14 / 0.18 |
| Unit cell edges [Å] |
46.26 x
75.70 x
81.54
|
| Unit cell angles [°] |
90.0,
90.0,
90.0
|

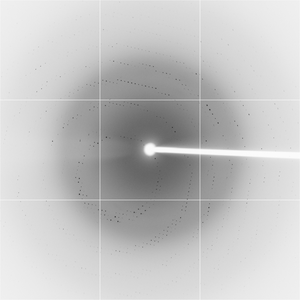

Dataset T3017_1_E1_###.img details
| Number of frames |
92 (1 - 92) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
8.0 |
| Wavelength [Å] |
0.97954 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

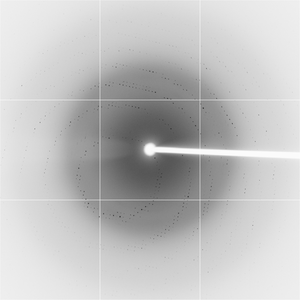

Dataset T3017_1_E2_###.img details
| Number of frames |
92 (1 - 92) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
8.0 |
| Wavelength [Å] |
0.91837 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

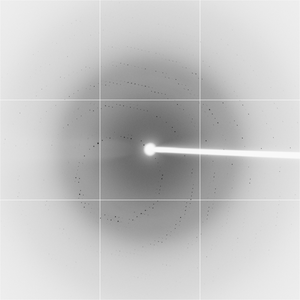

Dataset T3017_2_###.img details
| Number of frames |
92 (1 - 92) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
8.0 |
| Wavelength [Å] |
0.97916 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

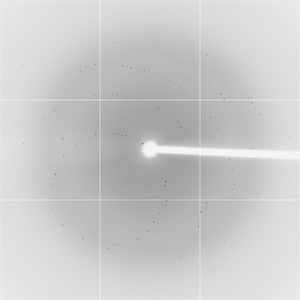

Dataset T3017_3_###.img details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
400.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
8.0 |
| Wavelength [Å] |
0.91837 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

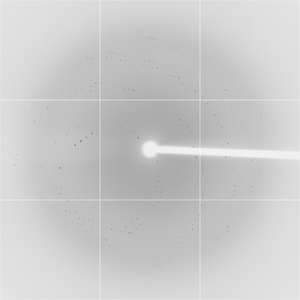

Dataset T3017_4_###.img details
| Number of frames |
60 (1 - 60) |
| Distance [mm] |
400.0 |
| Oscillation width [°] |
1.50 |
| Phi [°] |
8.0 |
| Wavelength [Å] |
0.97916 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

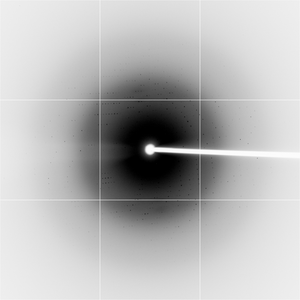

Dataset T3017_5_###.img details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
97.08 |
| Wavelength [Å] |
0.91837 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
