Diffraction project datasets 1499583_2b8m
- Method: MAD
- Resolution: 1.7 Å
- Space group: P 31 2 1
PDB website for 2B8M
PDB validation report for 2B8M
doi:10.18430/M32B8M
Project details

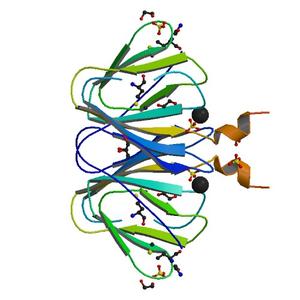

| Title | Crystal structure of a rmlc-like cupin family protein with a double-stranded beta-helix fold (mj0764) from methanocaldococcus jannaschii at 1.70 A resolution |
| Authors | Joint Center for Structural Genomics (JCSG) |
| Bioentity | None |
| R / Rfree | 0.15 / 0.20 |
| Unit cell edges [Å] | 49.83 x 49.83 x 78.74 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

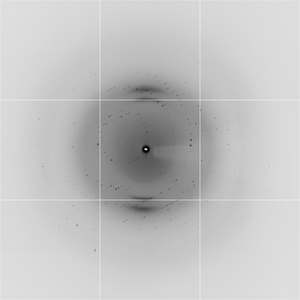

Dataset 18547_1_###.img details
| Number of frames | 120 (1 - 120) |
| Distance [mm] | 230.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | -24.0 |
| Wavelength [Å] | 0.97960 |
| Experiment Date | 2005-09-09 |
| Equipment | 8.2.2 at ALS (Advanced Light Source) |
