Diffraction project datasets 13815834_1vph
Project details
| Title |

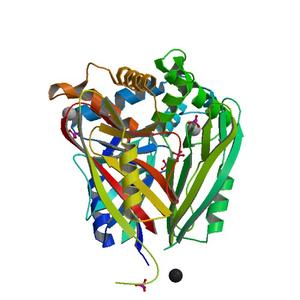

CRYSTAL STRUCTURE OF a YbjQ-like protein of unknown function (SSO2532) FROM SULFOLOBUS SOLFATARICUS P2 AT 1.76 A RESOLUTION |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| R / Rfree |
0.19 / 0.22 |
| Unit cell edges [Å] |
79.86 x
92.18 x
114.13
|
| Unit cell angles [°] |
90.0,
90.0,
90.0
|

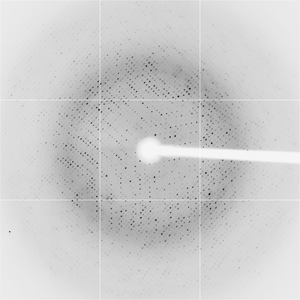

Dataset 11319_1_###.img details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
240.0 |
| Wavelength [Å] |
0.97925 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

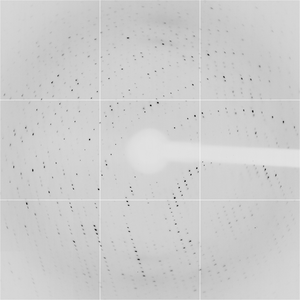

Dataset 11319_2_###.img details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
500.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
330.0 |
| Wavelength [Å] |
0.97925 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
