Diffraction project datasets 10176612_2f22
Project details
| Title |

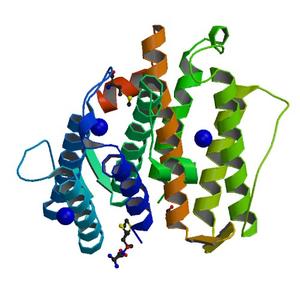

CRYSTAL STRUCTURE OF A PUTATIVE DNA DAMAGE-INDUCABLE (DINB) PROTEIN (BH3987) FROM BACILLUS HALODURANS AT 1.42 A RESOLUTION |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.16 / 0.18 |
| Unit cell edges [Å] |
49.36 x
77.71 x
80.15
|
| Unit cell angles [°] |
90.0,
90.0,
90.0
|

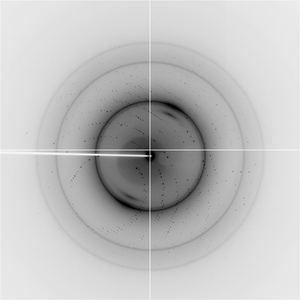

Dataset 19092_1_E1_###.img details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
140.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
261.0 |
| Wavelength [Å] |
0.97970 |
| Experiment Date |
2005-09-28 |
| Equipment |
8.2.1
at ALS (Advanced Light Source)
|

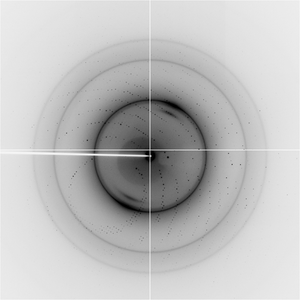

Dataset 19092_1_E2_###.img details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
140.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
261.0 |
| Wavelength [Å] |
1.00000 |
| Experiment Date |
2005-09-28 |
| Equipment |
8.2.1
at ALS (Advanced Light Source)
|

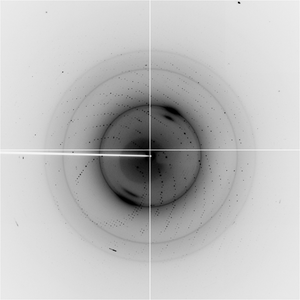

Dataset 19092_2_###.img details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
130.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
261.0 |
| Wavelength [Å] |
0.97960 |
| Experiment Date |
2005-09-28 |
| Equipment |
8.2.1
at ALS (Advanced Light Source)
|

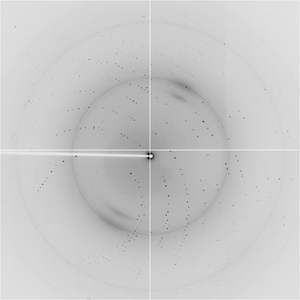

Dataset 19092_3_###.img details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
200.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
261.0 |
| Wavelength [Å] |
0.97960 |
| Experiment Date |
2005-09-28 |
| Equipment |
8.2.1
at ALS (Advanced Light Source)
|
