Diffraction project datasets 10176122_1vmf

  • Method: MAD
  • Resolution: 1.46 Å
  • Space group: P 21 21 21
Download all images (9.2 GB)

PDB website for 1VMF
PDB validation report for 1VMF

doi:10.18430/M31VMF

Project details

Title CRYSTAL STRUCTURE OF a YBJQ-LIKE FOLD PROTEIN OF UNKNOWN FUNCTION (BH3498) FROM BACILLUS HALODURANS AT 1.46 A RESOLUTION
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.15 / 0.18
Unit cell edges [Å] 57.60 x 58.95 x 134.96
Unit cell angles [°] 90.0, 90.0, 90.0

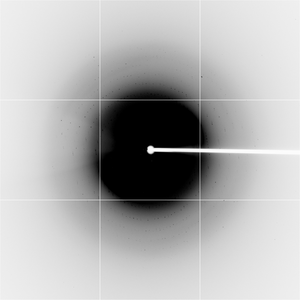

Dataset 11014_1_###.img details

Number of frames 200 (1 - 200)
Distance [mm] 200.0
Oscillation width [°] 0.50
Phi [°] 34.0
Wavelength [Å] 0.98008
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

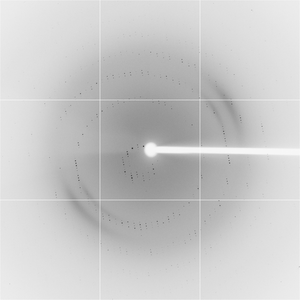

Dataset 11014_2_###.img details

Number of frames 100 (1 - 100)
Distance [mm] 350.0
Oscillation width [°] 1.00
Phi [°] 34.0
Wavelength [Å] 0.98008
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

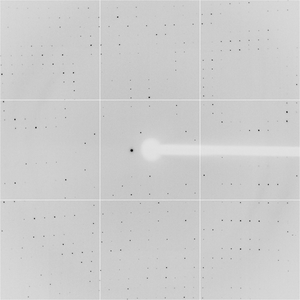

Dataset 11014_3_###.img details

Number of frames 100 (1 - 100)
Distance [mm] 550.0
Oscillation width [°] 1.00
Phi [°] 133.0
Wavelength [Å] 0.98008
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
