Diffraction project datasets 10175521_1vra

  • Method: MAD
  • Resolution: 2.0 Å
  • Space group: P 41 21 2
Download all images (2.6 GB)

PDB website for 1VRA
PDB validation report for 1VRA

doi:10.18430/M31VRA

Project details

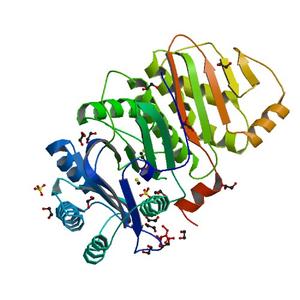

Title Crystal structure of Arginine biosynthesis bifunctional protein argJ (10175521) from Bacillus halodurans at 2.00 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.14 / 0.16
Unit cell edges [Å] 70.66 x 70.66 x 222.29
Unit cell angles [°] 90.0, 90.0, 90.0

Dataset 13498_1_E1_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 250.0
Oscillation width [°] 0.50
Phi [°] 320.0
Wavelength [Å] 0.97963
Experiment Date 2005-01-21
Equipment 8.2.1 at ALS (Advanced Light Source)

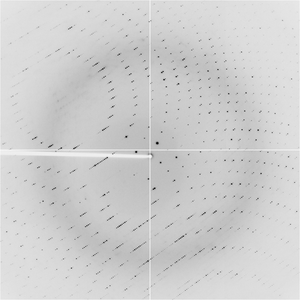

Dataset 13498_1_E2_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 250.0
Oscillation width [°] 0.50
Phi [°] 320.0
Wavelength [Å] 0.99187
Experiment Date 2005-01-21
Equipment 8.2.1 at ALS (Advanced Light Source)

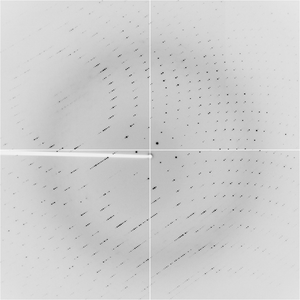

Dataset 13498_2_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 250.0
Oscillation width [°] 0.50
Phi [°] 320.0
Wavelength [Å] 0.97941
Experiment Date 2005-01-21
Equipment 8.2.1 at ALS (Advanced Light Source)
