Diffraction project datasets 10175472_2gfg

  • Method: MAD
  • Resolution: 2.12 Å
  • Space group: P 21 21 21
Download all images (3.4 GB)

PDB website for 2GFG
PDB validation report for 2GFG

doi:10.18430/M32GFG

Project details

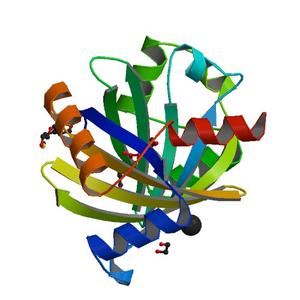

Title Crystal structure of a putative adenylate cyclase (bh2851) from bacillus halodurans at 2.12 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.23 / 0.27
Unit cell edges [Å] 43.03 x 74.69 x 188.13
Unit cell angles [°] 90.0, 90.0, 90.0

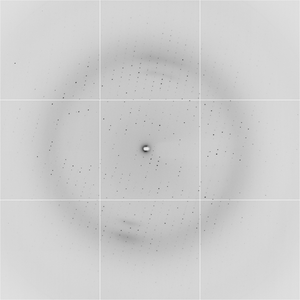

Dataset 20886_1_E1_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 350.0
Oscillation width [°] 0.50
Phi [°] 278.0
Wavelength [Å] 0.97970
Experiment Date 2005-12-16
Equipment 8.2.2 at ALS (Advanced Light Source)

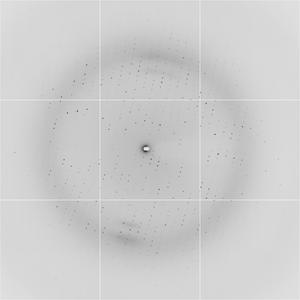

Dataset 20886_1_E2_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 350.0
Oscillation width [°] 0.50
Phi [°] 278.0
Wavelength [Å] 1.00000
Experiment Date 2005-12-16
Equipment 8.2.2 at ALS (Advanced Light Source)

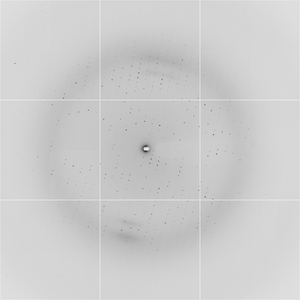

Dataset 20886_2_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 350.0
Oscillation width [°] 0.50
Phi [°] 278.0
Wavelength [Å] 0.97970
Experiment Date 2005-12-16
Equipment 8.2.2 at ALS (Advanced Light Source)
