Diffraction project datasets 013574_4wgh
- Method: SAD
- Resolution: 1.8 Å
- Space group: P 62
PDB website for 4WGH
PDB validation report for 4WGH
doi:10.18430/M3C884
Project details

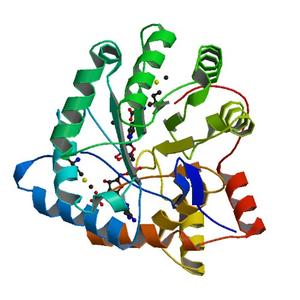

| Title | Crystal structure of aldo/keto reductase from Klebsiella pneumoniae in complex with NADP and acetate at 1.8 A resolution |
| Authors | Bacal, P., Shabalin, I.G., Cooper, D.R., Hillerich, B.S., Zimmerman, M.D., Bonanno, J., Seidel, R., Almo, S.C., Minor, W. |
| R / Rfree | 0.15 / 0.19 |
| Unit cell edges [Å] | 99.48 x 99.48 x 55.18 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

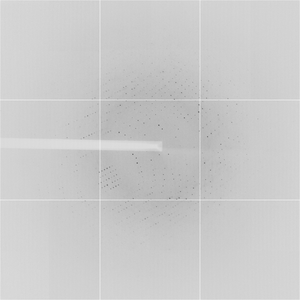

Dataset 013574_P6_9_1_####.img details
| Number of frames | 100 (1 - 100) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | 20.0 |
| Wavelength [Å] | 0.97913 |
| Experiment Date | 2014-03-23 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |

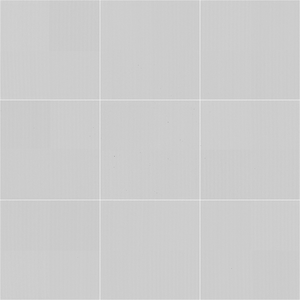

Dataset 013574_P6_9_2_####.img details
| Number of frames | 140 (1 - 140) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -176.0 |
| Wavelength [Å] | 0.97913 |
| Experiment Date | 2014-03-23 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
